TNC Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

Reverse Polarity TNC Male to BNC Male Cable Using RG213 Coax

Product ID: PE35233

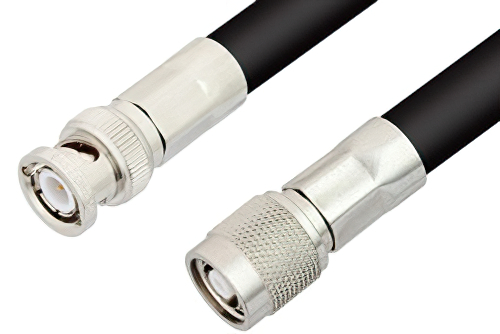

Reverse Polarity TNC Male to BNC Male Cable Using RG213 Coax

Image Views:  Reverse Polarity TNC Male to BNC Male Cable Using RG213 Coax high resolution
Zoom


Click for:PE35233 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Reverse Polarity
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG213/U
RF Cable TypeRG213
RF Cable Impedance50


Reverse Polarity TNC Male to BNC Male Cable Using RG213 Coax

PE35233 is a reverse polarity TNC male to BNC male cable using RG213 coax. This Pasternack reverse polarity TNC male to BNC male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm BNC for connector 2.

Our reverse polarity male TNC to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE35233 TNC reverse polarity male to BNC male cable assembly is constructed with RG213 coax.
