TNC Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

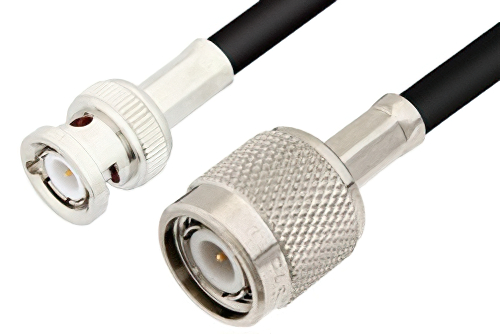

TNC Male to BNC Male Cable Using 75 Ohm RG59 Coax, RoHS

Product ID: PE3023LF
TNC Male to BNC Male Cable Using 75 Ohm RG59 Coax, RoHS

Image Views:  TNC Male to BNC Male Cable Using 75 Ohm RG59 Coax, RoHS high resolution
Zoom


Click for:PE3023LF Datasheet
Click for:PE3023LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG59B/U
RF Cable TypeRG59
RF Cable Impedance75


TNC Male to BNC Male Cable Using 75 Ohm RG59 Coax, RoHS

PE3023LF is a TNC male to BNC male cable using RG59 coax. This Pasternack TNC male to BNC male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm BNC for connector 2.

Our male TNC to male BNC cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3023LF TNC male to BNC male cable assembly is constructed with RG59 coax.
