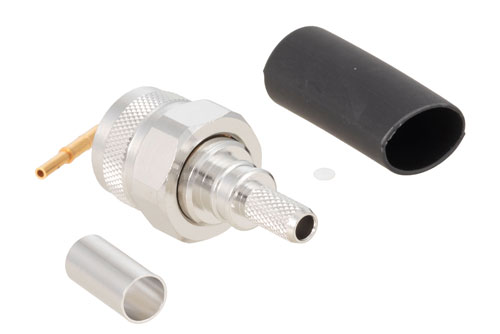

TC-195-TM-X TNC male coaxial connector has an interface type of TNC male, which is compatible with LMR®-195 and PE-C195 cables, and has an impedance of 50 Ohms. Pasternack’s TNC male connector uses crimp/solder as an attachment method. Our male TNC coaxial connector provides a maximum frequency of 6 GHz. This TNC male RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack TNC male coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack’s TNC coaxial connector has a brass body with tri-metal plating. Our TC-195-TM-X TNC connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The TC-195-TM-X TNC connector operates at a temperature range of 40 to 125 deg C. Our male TNC coaxial RF connector has a maximum insertion loss of 0.244 dB. This TNC connector has a gold inner contact plating. The Pasternack TNC male connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our TNC male connector has a length of 1.095 inches, a width of 0.6 inches, and a weight of 0.041 lbs. This TNC male coaxial connector features a tri-metal plated brass coupling nut.
This Pasternack male TNC connector will ship the same business day as purchased. Our TNC male coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
