TNC Male to Mini UHF Male Cable Assemblies

Check out our new RF calculators & conversion tools...

TNC Male to Mini UHF Male Cable Using LMR-195 Coax

Product ID: PE3C0047
TNC Male to Mini UHF Male Cable Using LMR-195 Coax

Image Views:  TNC Male to Mini UHF Male Cable Using LMR-195 Coax high resolution
Zoom


Click for:PE3C0047 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2Mini UHF
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberLMR-195
RF Cable TypeLMR-195
RF Cable Impedance50

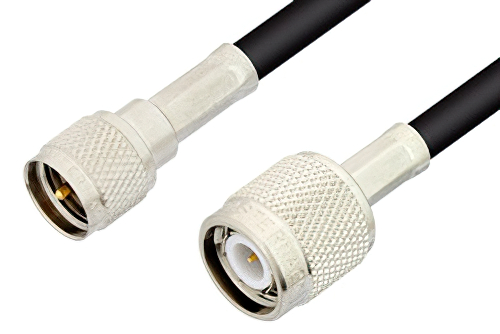

TNC Male to Mini UHF Male Cable Using LMR-195 Coax

PE3C0047 is a TNC male to Mini UHF male cable using LMR-195 coax. This Pasternack TNC male to Mini UHF male cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm Mini UHF for connector 2.

Our male TNC to male Mini UHF cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C0047 TNC male to Mini UHF male cable assembly is constructed with LMR-195 coax and the maximum VSWR is 1.4:1.

* LMR™ is a trademark of Times Microwave Systems.
