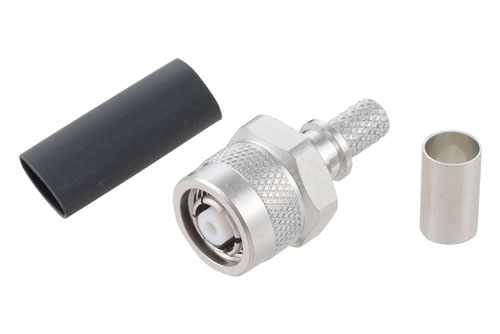

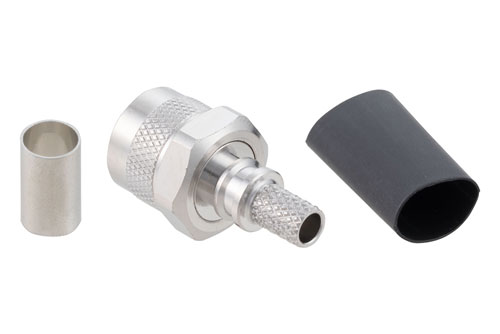

EZ-240-TM-RP-X reverse polarity TNC male coaxial connector has an interface type of TNC male LMR-240, LMR-240-DB, LMR-240-UF, LMR-240-FR, RG8X and PE-C240 and a 50 Ohm impedance. Pasternack's reverse polarity TNC male connector uses crimp/non-solder contact as an attachment method. Our reverse polarity male TNC coaxial connector provides a maximum frequency of 6 GHz.
The Pasternack reverse polarity TNC male coaxial connector has a PTFE dielectric type and a VSWR of 1.3:1. Pasternack's TNC coaxial connector has a brass body with tri-metal plating. Our EZ-240-TM-RP-X reverse polarity TNC connector uses gold over nickel-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The EZ-240-TM-RP-X TNC connector operates at a temperature range of -65 to 165 deg C. The Pasternack reverse polarity TNC male connector has a dielectric withstanding voltage of 750 Vrms.
This Pasternack reverse polarity male TNC connector will ship the same business day as purchased. Our TNC reverse polarity male connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
