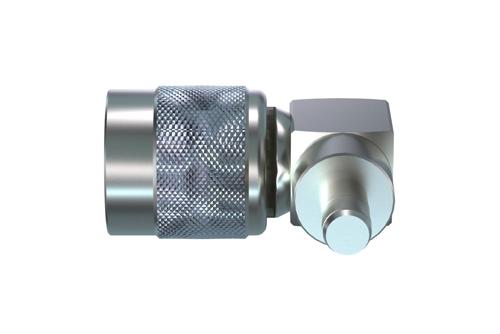

PE46771 reverse polarity TNC male right angle coaxial connector has an interface type of TNC male, which is compatible with RG55, RG141, RG142, RG223 and RG400 cables, and has an impedance of 50 Ohms. Pasternack’s reverse polarity TNC male connector uses crimp/solder as an attachment method. Our reverse polarity male TNC right angle coaxial connector provides a maximum frequency of 3 GHz. This TNC male RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack reverse polarity right angle TNC male coaxial connector has a PTFE dielectric type. Pasternack’s TNC coaxial connector has a brass body with nickel plating. Our PE46771 reverse polarity TNC right angle connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE46771 RF connector features a 100 µinch minimum body plating specification. The PE46771 TNC connector operates at a temperature range of -65 to 165 deg C. This right angle TNC connector has a gold inner contact plating. The Pasternack reverse polarity TNC male connector has a maximum operating voltage of 500 Vrms.
This Pasternack reverse polarity right angle male TNC connector will ship the same business day as purchased. Our TNC right angle male coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
