PE4666 reverse polarity TNC male coaxial connector has an interface type of TNC male which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 50 Ohms. Pasternack's reverse polarity TNC male connector uses crimp/solder as an attachment method. This TNC male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack reverse polarity TNC male coaxial connector has a PTFE dielectric type. Pasternack's TNC coaxial connector has a brass body with nickel plating. Our PE4666 reverse polarity TNC connector uses agold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.

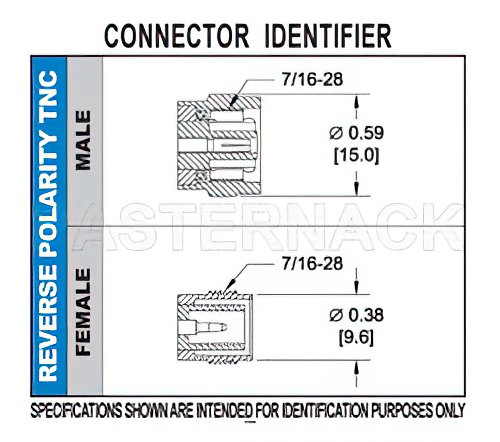

Our high-quality PE4666 features a 70 µin minimum body plating specification. This TNC connector has a gold inner contact plating. Our TNC male connector has a length of 1.135 inches, a width of 0.59 inches, and a weight of 0.034 lbs.
This Pasternack reverse polarity male TNC connector will ship the same business day as purchased. Our TNC male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
