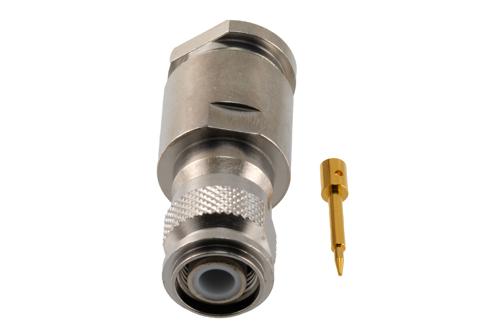

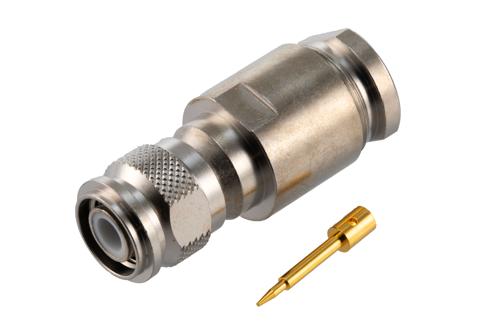

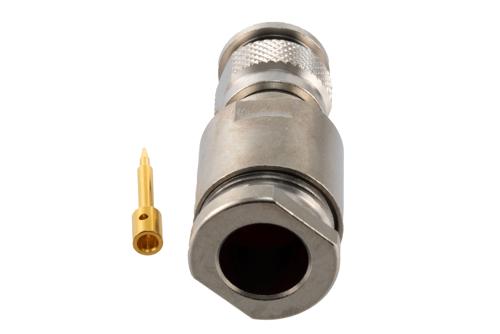

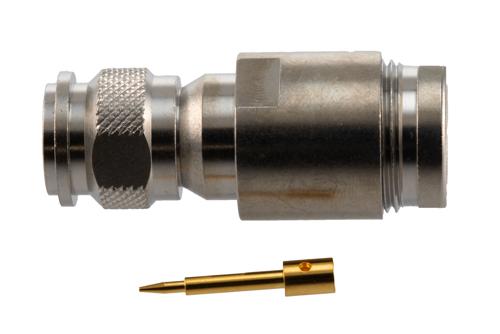

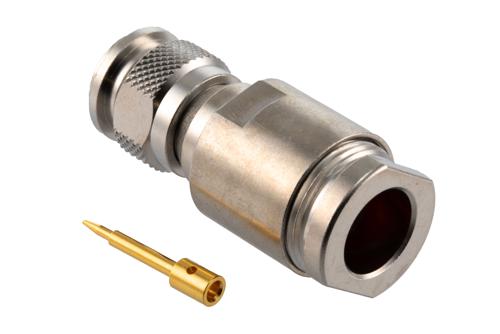

PE51765 TNC male coaxial connector has an interface type of TNC male which is compatible with RG225, RG214, RG393 and RG9 cables and has an impedance of 50 Ohms. Pasternack’s TNC male connector uses clamp/solder as an attachment method. Our male TNC coaxial connector provides a maximum frequency of 3 GHz. This TNC male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack TNC male coaxial connector has a teflon dielectric type and a VSWR of 1.25:1. Pasternack’s TNC coaxial connector has a brass body with copper-tin-zinc alloy plating. Our PE51765 TNC connector uses brass inner and outer contacts. The Pasternack RF connector has a maximum inner and outer conductor resistance of 1.5 mOhms and 1 mOhm respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE51765 TNC connector operates at a temperature range of -65 to 165 deg C. This male TNC coaxial RF connector has a maximum insertion loss of 0.173 dB. This TNC connector has a gold over nickel over copper inner contact plating and a copper-tin-zinc alloy outer contact plating. The Pasternack TNC male connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our TNC male connector has a length of 1.492 inches, a width of 0.748 inches, and a weight of 0.1 lbs. This TNC male coaxial connector features a copper-tin-zinc alloy plated brass coupling nut. This radio frequency coaxial connector comes with a copper-tin-zinc alloy plated brass washer.
This Pasternack male TNC connector will ship the same business day as purchased. Our TNC male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
