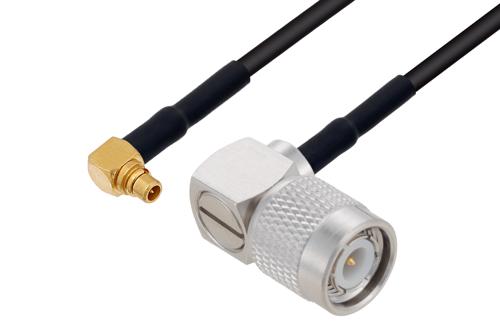

Radio frequency assembly TNC male right angle to MMCX plug right angle low loss cable using LMR-100 coax with heatshrink and 90 deg. clock from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The TNC male right angle to MMCX plug right angle low loss cable using LMR-100 coax with heatshrink and 90 deg. clock, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom TNC to MMCX cable assembly orders will ship the same business day as well.
Pasternack RF coax low loss cable assembly is built with a right angle TNC cable connection on one end and a right angle MMCX cable connection on the other. Our low loss right angle TNC to right angle MMCX cable assembly has a male gender on end 1 and a plug on end 2. PE3W01732/SP can also be known as a low loss right angle TNC plug to right angle MMCX male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly has copper clad steel as the cable's inner conducting material and PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W01732/SP RF cable has a PVC jacket of 0.110-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 66% and a minimum RF shielding of 90 dB. Our right angle TNC male to right angle MMCX plug cable has a maximum VSWR of 1.4:1.
TNC plug to MMCX male cable assembly PE3W01732/SP is built with LMR-100A which is a flexible coax type. The Pasternack flexible TNC cable assembly is manufactured with right angle TNC to right angle MMCX cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body. Additional dimensions, specifications and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet. PE3W01732/SP can also be used in the other direction and will be a right angle MMCX plug to right angle TNC male cable assembly if the opposite connectivity is required.
Low loss TNC right angle plug to MMCX right angle male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality TNC to MMCX cable assembly for quick shipment worldwide. Variations of TNC and MMCX cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal TNC to MMCX low loss RF cable assembly as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
