Radio frequency assembly TNC male right angle to SMB plug right angle low loss cable using LMR-195-UF coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The TNC male right angle to SMB plug right angle low loss cable using LMR-195-UF coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom TNC to SMB cable assembly orders will ship the same business day as well.

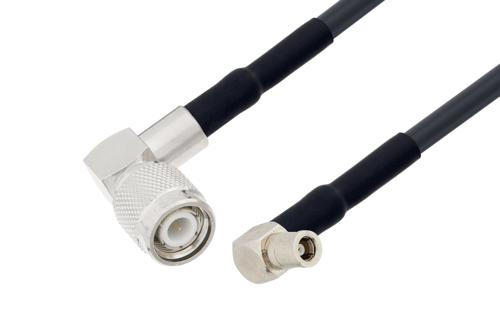

Pasternack RF coax low loss cable assembly is built with a right angle TNC cable connection on one end and a right angle SMB cable connection on the other. Our low loss right angle TNC to right angle SMB cable assembly has a male gender on end 1 and a plug on end 2. PE3W12863/HS can also be known as a low loss right angle TNC plug to right angle SMB male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and Foam PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 2-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W12863/HS RF cable has a TPE jacket of 0.195-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 74% and a minimum RF shielding of 90 dB. Our right angle TNC male to right angle SMB plug cable has a maximum VSWR of 1.3:1.
TNC plug to SMB male cable assembly PE3W12863/HS is built with LMR-195-UF which is a flexible coax type. The Pasternack flexible TNC cable assembly is manufactured with right angle TNC to right angle SMB cable connectors, has a 50 Ohm impedance, and is double shielded. One connector features the crimp/crimp attachment method and a brass body with nickel plating, while the other has the crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet. PE3W12863/HS can also be used in the other direction and will be a right angle SMB plug to right angle TNC male cable assembly if the opposite connectivity is required.
Low loss TNC right angle plug to SMB right angle male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality TNC to SMB cable assembly for quick shipment worldwide. Variations of TNC and SMB cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal TNC to SMB low loss RF cable assembly as per your requirements.
LMR® is a registered trademark of Times Microwave Systems.
