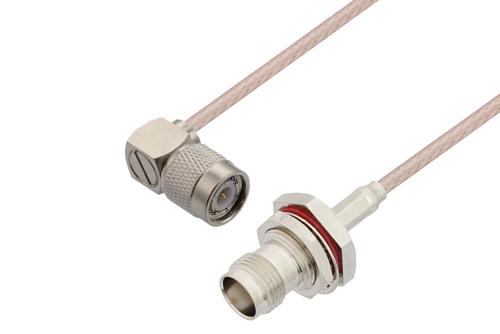

TNC Male Right Angle to TNC Female Bulkhead Cable Using RG316-DS Coax

Product ID: PE38898

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	TNC
Connector 1 Gender	Male
Connector 1 Polarity	Standard
Connector Angle 1	Right Angle
Connector 1 Impedance	50 Ohm
Connector 2 Series	TNC
Connector 2 Gender	Female
Connector 2 Polarity	Standard
Connector Angle 2	Straight
Connector Mount Method 2	Bulkhead
Connector 2 Impedance	50 Ohm
Connector 1 Body Material	Brass
Connector 1 Body Plating	Nickel
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

TNC Male Right Angle to TNC Female Bulkhead Cable Using RG316-DS Coax

Radio frequency assembly TNC male right angle to TNC female bulkhead cable using RG316-DS coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. The TNC male right angle to TNC female bulkhead cable using RG316-DS coax, like our other Pasternack coaxial cable assemblies, will ship the same day and any custom TNC to TNC cable assembly orders will ship same business day as well.

Pasternack RF coax cable assembly is built with right angle TNC cable connection on one end and TNC bulkhead cable connection on the other. Our right angle TNC to TNC cable assembly has male gender on end 1 and female on end 2. PE38898 can also be known as a right angle TNC plug to TNC jack cable assembly and will be shipped same-day as it is purchased. This RF cable assembly with 0.5 inches diameter has copper clad steel as cable inner conducting material and PTFE dielectric type.

TNC plug to TNC jack cable assembly PE38898 is built with RG316-DS which is a flexible coax type. The Pasternack flexible TNC cable assembly is manufactured with right angle TNC to TNC cable connectors, has a 50 Ohm impedance and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this PE38898 RF cable are available on our downloadable PDF datasheet.PE38898 can also be used in the other direction and will be TNC female bulkhead to right angle TNC male cable assembly if the opposite connectivity is required.

TNC right angle plug to TNC jack bulkhead cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality TNC to TNC cable assembly for quick shipment worldwide. Variations of TNC cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured.For further information on similar products, our expert technical support and trained sales team can get you the ideal TNC RF cable assembly as per your requirements.
