TNC to SMC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

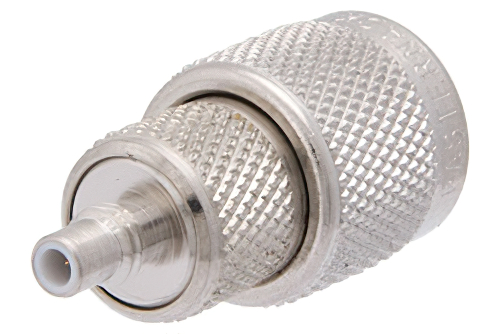

TNC Male to SMC Jack Adapter

Product ID: PE9226
TNC Male to SMC Jack Adapter

Image Views:  TNC Male to SMC Jack Adapter high resolution
Zoom


Click for:PE9226 Datasheet
Click for:PE9226 RoHS Cert
Click for:PE9226 REACH Cert
Available Quantity: 139
Pricing Table
QUANTITYPRICE
1-24$62.45
25-49$59.33
50-99$56.21
100-249$53.71
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMC
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


TNC Male to SMC Jack Adapter

TNC adapter PE9226 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our TNC to SMC adapter is a between series coaxial adapter design. This 50 Ohm TNC adapter is precision manufactured to RF components industry specifications.

TNC male to SMC jack adapter is one of the many RF components that ship same day as they are ordered. PE9226 male TNC to jack SMC adapter has a straight body. This Pasternack straight TNC coax adapter is a in-line RF adapter.

Our male TNC to jack SMC adapter PE9226 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This TNC to SMC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
