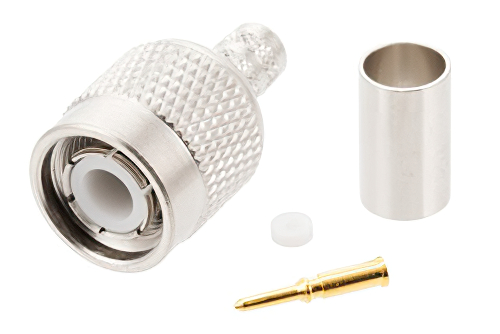

PE44634 TNC male coaxial connector has an interface type of TNC male which is compatible with PE-C240, RG8X, .240 inch, LMR®-240, LMR®-240-DB and LMR®-240-UF cables and has an impedance of 50 Ohms. Pasternack’s TNC male connector uses crimp/solder as an attachment method. Our male TNC coaxial connector provides a maximum frequency of 11 GHz. This TNC male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack TNC male coaxial connector has a POM dielectric type. Pasternack’s TNC coaxial connector has a brass body with nickel plating. Our PE44634 TNC connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE44634 TNC connector operates at a temperature range of -40 to 85 deg C. This TNC connector has a gold inner contact plating. The Pasternack TNC male connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,500 Vrms. Our TNC male connector has a length of 1.172 inches, a width of 0.59 inches, and a weight of 0.032 lbs.
This Pasternack male TNC connector will ship the same business day as purchased. Our TNC male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
* LMR® is a registered trademark of Times Microwave Systems.
