TNC Male to TNC Female Cable Assemblies

Check out our new RF calculators & conversion tools...

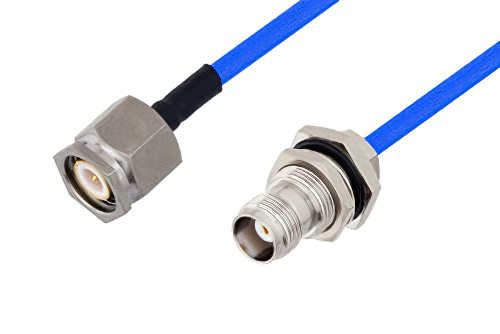

TNC Male to TNC Female Bulkhead Cable Using PE-141FLEX Coax, RoHS

Product ID: PE3CA1046
TNC Male to TNC Female Bulkhead Cable Using PE-141FLEX Coax, RoHS

Image Views:  TNC Male to TNC Female Bulkhead Cable Using PE-141FLEX Coax, RoHS high resolution
Zoom


Click for:PE3CA1046 Datasheet
Click for:PE3CA1046 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2TNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberPE-P141EAM
RF Cable TypePE-141FLEX
RF Cable Impedance50


TNC Male to TNC Female Bulkhead Cable Using PE-141FLEX Coax, RoHS

PE3CA1046 is a TNC male to TNC female bulkhead cable using PE-141FLEX coax. This Pasternack TNC male to TNC female bulkhead cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm TNC for connector 2.

Our male TNC to female TNC bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1046 TNC male to TNC female bulkhead cable assembly is constructed with PE-141FLEX coax and the maximum VSWR is 1.45:1.
