TNC Male Right Angle to TNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

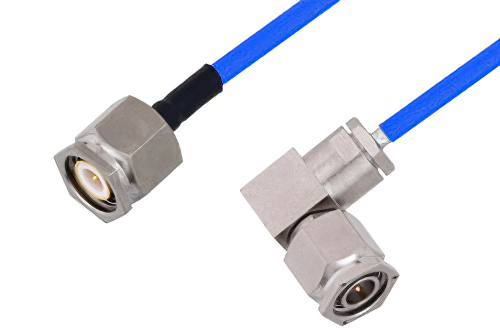

TNC Male to TNC Male Right Angle Cable Using PE-141FLEX Coax, RoHS

Product ID: PE3CA1044
TNC Male to TNC Male Right Angle Cable Using PE-141FLEX Coax, RoHS

Image Views:  TNC Male to TNC Male Right Angle Cable Using PE-141FLEX Coax, RoHS high resolution
Zoom


Click for:PE3CA1044 Datasheet
Click for:PE3CA1044 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-P141EAM
RF Cable TypePE-141FLEX
RF Cable Impedance50


TNC Male to TNC Male Right Angle Cable Using PE-141FLEX Coax, RoHS

PE3CA1044 is a TNC male to TNC male right angle cable using PE-141FLEX coax. This Pasternack TNC male to TNC male right angle cable assembly uses a 50 Ohm TNC for connector 1 and a 50 Ohm TNC for connector 2. TNC to TNC right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male TNC to male TNC right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1044 TNC male to TNC male right angle cable assembly is constructed with PE-141FLEX coax and the maximum VSWR is 1.45:1.
