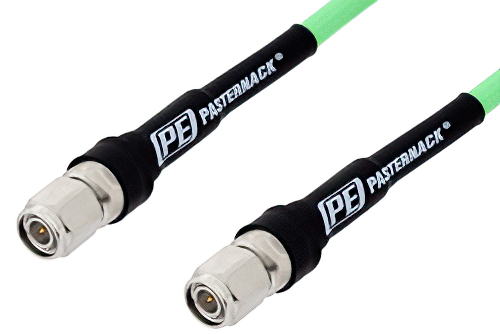

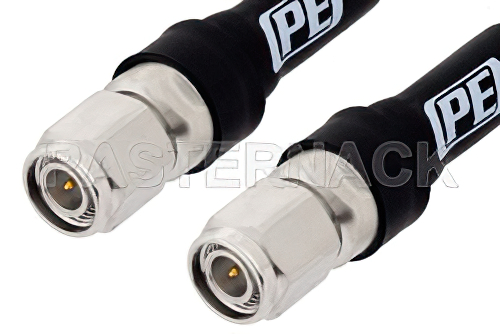

TNC Male to TNC Male Low Loss Test Cable 36 Inch Length Using PE-P300LL Coax, RoHS

Product ID: PE334-36

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$482.99
25-49$458.84
50-99$434.69
100+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 124
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberPE-P300LL
RF Cable TypePE-P300LL
RF Cable Impedance50 Ohm
Length36 inches

Description

TNC Male to TNC Male Low Loss Test Cable 36 Inch Length Using PE-P300LL Coax, RoHS

The PE334-36 is a TNC male to TNC male low loss test cable designed for PE-P300LL coax, offering 50 Ohm impedance and DC to 18 GHz operation. It supports RF system integration and bench testing where a straight in-series cable assembly is needed between TNC interfaces. Passivated Stainless Steel connector bodies, Gold-plated Beryllium Copper contacts, and FEP jacket construction support reliable performance from -55°C to 125°C.

Pasternack RF coax low loss test cable assembly is built with TNC cable connection on one end and TNC cable connection on the other. Our low loss test TNC to TNC cable assemblies have a male gender on end 1 and male on end 2. This TNC to TNC cable is a male to male coax assembly, PE334-36, can also be known as a low loss test TNC plug to TNC plug cable assembly and will be shipped same-day as it is purchased.

TNC plug to TNC plug cable assembly PE334-36 is built with PE-P300LL which is a flexible coax type. The Pasternack flexible TNC cable assembly is manufactured with TNC to TNC cable connectors, has a 50 Ohm impedance and is triple shielded. RF specs on this 18 GHz maximum frequency TNC male to TNC male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions.

Low loss test TNC plug to TNC plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality TNC to TNC cable assembly for quick shipment worldwide. Variations of TNC cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this TNC male to TNC male low loss test cable 36 inch length using PE-P300LL coax, RoHS.

Frequently Asked Questions

What is the PE334-36 RF test cable?

The PE334-36 is a TNC male to TNC male low loss test cable built with PE-P300LL coax for 50 Ohm RF interconnects. It supports DC to 18 GHz operation, uses straight TNC connectors, and has a maximum VSWR of 1.35:1. Engineers use it in bench testing, subsystem integration, and production setups where stable TNC connections are required. Its flexible construction and passivated Stainless Steel connectors make it suitable for repeated lab use across demanding temperature ranges.

What applications use a TNC male to TNC male low loss test cable?

A TNC male to TNC male low loss test cable like PE334-36 is used where two TNC female ports must be linked directly. Its 50 Ohm design, DC to 18 GHz range, and PE-P300LL coax support broadband RF testing and integration tasks. Common uses include bench instruments, development platforms, and production fixtures that rely on TNC interface continuity. Engineers also choose it when they need a flexible assembly that balances routing ease with controlled RF performance.

Why would engineers choose PE334-36 for bench testing and integration?

Engineers choose PE334-36 when they need a flexible TNC cable assembly that supports broadband measurements and straightforward in-series connections. It combines PE-P300LL low loss coax, straight TNC male connectors, and 50 Ohm impedance in one configured assembly. That combination helps simplify test bench routing while maintaining compatibility with common TNC-equipped instruments and subsystems. Its passivated Stainless Steel bodies, Gold-plated Beryllium Copper contacts, and FEP jacket also support reliable use in repeated engineering workflows.

Is the PE334-36 suitable for repeated RF lab use?

The PE334-36 is suitable for repeated RF lab use because it is built as a test cable with durable connector materials. It uses passivated Stainless Steel connector bodies, Gold-plated Beryllium Copper contacts, PTFE dielectrics, and an FEP jacket. These materials support dependable mating and handling in lab benches, integration stations, and production test environments. Its operating temperature range of -55°C to 125°C also helps it serve in controlled labs and broader equipment development conditions.
