TNC Male Right Angle to TNC Male Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

TNC Male Right Angle to TNC Male Right Angle Cable 200 CM Length Using RG400 Coax

Product ID: PE3W00037-200CM

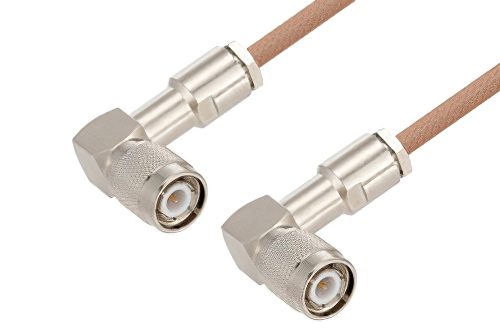

TNC Male Right Angle to TNC Male Right Angle Cable 200 CM Length Using RG400 Coax

Image Views:  TNC Male Right Angle to TNC Male Right Angle Cable 200 CM Length Using RG400 Coax high resolution
Zoom


Click for:PE3W00037-200CM Datasheet
Available Quantity: 704
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Pricing Table
QUANTITYPRICE
1-24$135.82
25-49$126.31
50-99$116.81
100-249$108.66
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2TNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG400/U
RF Cable TypeRG400
RF Cable Impedance50 Ohm


TNC Male Right Angle to TNC Male Right Angle Cable 200 CM Length Using RG400 Coax

Radio frequency assembly TNC male right angle to TNC male right angle cable 200 cm length using RG400 coax from Pasternack is part of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. TNC male right angle to TNC male right angle cable 200 cm length using RG400 coax, like our other Pasternack coaxial cable assemblies, will ship the same day and any custom TNC to TNC cable assembly orders will ship same day as well.

Pasternack RF coax cable assembly is built with right angle TNC cable connection on one end and right angle TNC cable connection on the other. Our right angle TNC to right angle TNC cable assemblies have a male gender on end 1 and male on end 2. This TNC to TNC cable is a male to male coax assembly, PE3W00037-200CM, can also be known as a right angle TNC plug to right angle TNC plug cable assembly and will be shipped same-day as it is purchased.

TNC plug to TNC plug cable assembly PE3W00037-200CM is built with RG400 which is a flexible coax type. The Pasternack flexible TNC cable assembly is manufactured with right angle TNC to right angle TNC cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this 3 GHz maximum frequency TNC right angle male to TNC right angle male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions.

TNC right angle plug to TNC right angle plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality TNC to TNC cable assembly for quick shipment worldwide. Variations of TNC cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this TNC male right angle to TNC male right angle cable 200 cm length using RG400 coax.
