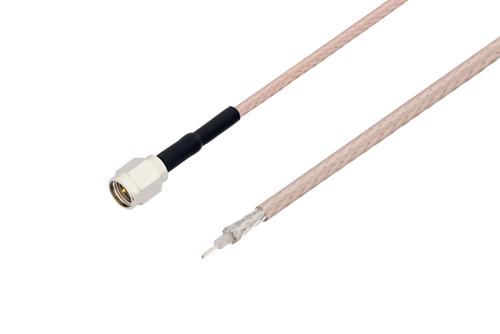

Radio frequency assembly trimmed lead to SMA male cable using RG316 coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The trimmed lead to SMA male cable using RG316 coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom trimmed lead to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a trimmed lead cable connection on one end and a SMA cable connection on the other. Our trimmed lead to SMA cable assembly has a sexless gender on end 1 and a male on end 2. PE3C6040/HS can also be known as a trimmed lead sexless to SMA plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
Our PE3C6040/HS RF cable has a FEP jacket of 0.102-inch diameter. The flexible RF cable has a between series connection.
Trimmed lead sexless to SMA plug cable assembly PE3C6040/HS is built with RG316 which is a flexible coax type. The Pasternack flexible Trimmed Lead cable assembly is manufactured with trimmed lead to SMA cable connectors, has a impedance, and is single shielded. One connector features the crimp/solder attachment method, while the other has the crimp/crimp attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C6040/HS can also be used in the other direction and will be a SMA male to trimmed lead sexless cable assembly if the opposite connectivity is required.
Trimmed lead sexless to SMA plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality trimmed lead to SMA cable assembly for quick shipment worldwide. Variations of trimmed lead and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal Trimmed Lead to SMA RF cable assembly as per your requirements.
