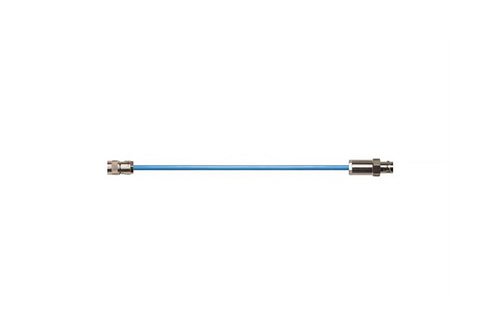

TRS 3-Slot Submini Plug to TRB 3-Lug Jack 1553 Cable Using 78 Ohm PE-30-02003 Coax

Product ID: PE3CA2375

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	TRS Subminiature
Connector 1 Gender	Plug
Connector 1 Polarity	Standard
Connector Angle 1	Straight
Connector 1 Impedance	78 Ohm
Connector 2 Series	TRB
Connector 2 Gender	Jack
Connector 2 Polarity	Standard
Connector Angle 2	Straight
Connector 2 Impedance	78 Ohm
Connector 1 Body Material	Brass
Connector 1 Body Plating	Nickel
RF Cable Part Number	PE-30-02003
RF Cable Type	30-02003
RF Cable Impedance	78 Ohm

Description

TRS 3-Slot Submini Plug to TRB 3-Lug Jack 1553 Cable Using 78 Ohm PE-30-02003 Coax

Radio frequency assembly TRS 3-Slot submini plug to TRB 3-Lug jack 1553 cable using 78 Ohm PE-30-02003 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. The TRS 3-Slot submini plug to TRB 3-Lug jack 1553 cable using 78 Ohm PE-30-02003 coax, like our other Pasternack coaxial cable assemblies, will ship the same day and any custom TRS subminiature to TRB cable assembly orders will ship same day as well.

Pasternack RF twinax 1553 cable assembly is built with TRS subminiature cable connection on one end and TRB cable connection on the other. Our 1553 TRS subminiature to TRB cable assemblies have a plug gender on end 1 and jack on end 2. PE3CA2375 can also be known as a 1553 TRS subminiature male to TRB female cable assembly and will be shipped same-day as it is purchased.

TRS subminiature male to TRB female cable assembly PE3CA2375 is built with 30-02003 which is a flexible twinax type. The Pasternack flexible TRS Subminiature cable assembly is manufactured with TRS subminiature to TRB cable connectors, has a 78 Ohm impedance. RF specs on this 500 MHz maximum frequency TRS subminiature plug to TRB jack cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3CA2375 can also be used in the other direction and will be TRB jack to TRS subminiature plug cable assembly if the opposite connectivity is required.

1553 TRS subminiature male to TRB female cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality TRS subminiature to TRB cable assembly for quick shipment worldwide. Variations of TRS subminiature cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this TRS 3-Slot submini plug to TRB 3-Lug jack 1553 cable using 78 Ohm PE-30-02003 coax.
