UHF to Mini UHF Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

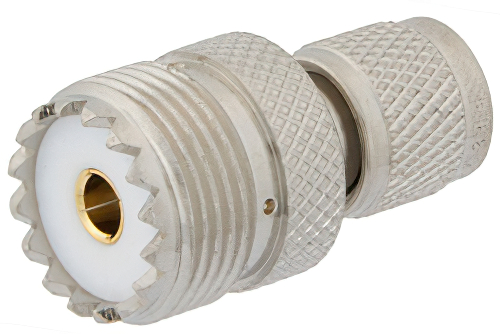

UHF Female to Mini UHF Male Adapter

Product ID: PE9344
UHF Female to Mini UHF Male Adapter

Image Views:  UHF Female to Mini UHF Male Adapter high resolution
Zoom


Click for:PE9344 Datasheet
Click for:PE9344 RoHS Cert
Click for:PE9344 REACH Cert
DISCONTINUED PRODUCT
Replaced By: PE91447
Remaining Quantity Available: 50
Pricing Table
QUANTITYPRICE
1-24$22.84
25-49$21.24
50-99$19.64
100-249$18.27
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1UHF
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2Mini UHF
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max300 MHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


UHF Female to Mini UHF Male Adapter

UHF adapter PE9344 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our UHF to Mini UHF adapter is a between series coaxial adapter design. This 50 Ohm UHF adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 300 MHz.

UHF female to Mini UHF male adapter is one of the many RF components that ship same day as they are ordered. PE9344 female UHF to male Mini UHF adapter has a straight body. This Pasternack straight UHF coax adapter is a in-line RF adapter.

Our female UHF to male Mini UHF adapter PE9344 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This UHF to Mini UHF radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
