UHF to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

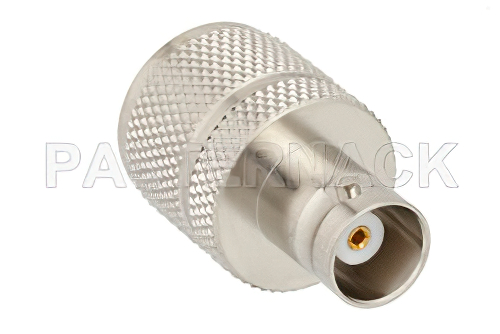

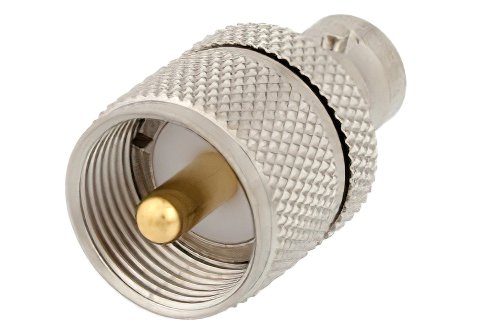

UHF Male to BNC Female Adapter

Product ID: PE91328
UHF Male to BNC Female Adapter


Image Views:  UHF Male to BNC Female Adapter high resolution
Zoomalternate image
View 2


Click for:PE91328 Datasheet
Click for:PE91328 RoHS Cert
Click for:PE91328 REACH Cert
Available Quantity: 1,013
Pricing Table
QUANTITYPRICE
1-24$13.02
25-49$12.11
50-99$11.20
100-249$10.42
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1UHF
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max300 MHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


UHF Male to BNC Female Adapter

UHF adapter PE91328 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our UHF to BNC adapter is a between series coaxial adapter design. This 50 Ohm UHF adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 300 MHz.

UHF male to BNC female adapter is one of the many RF components that ship same day as they are ordered. PE91328 male UHF to female BNC adapter has a straight body. This Pasternack straight UHF coax adapter is a in-line RF adapter.

Our male UHF to female BNC adapter PE91328 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This UHF to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
