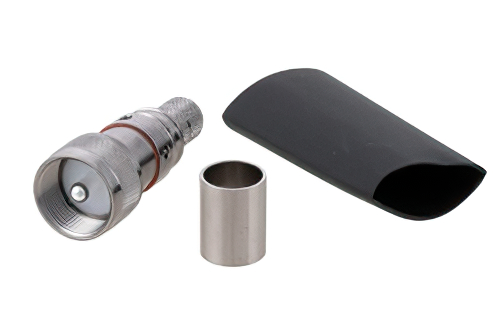

EZ-400-UM-X UHF male coaxial connector has an interface type of UHF male LMR-400 and a 50 Ohm impedance. Pasternack's UHF male connector uses crimp/non-solder contact as an attachment method. Our male UHF coaxial connector provides a maximum frequency of 3 GHz.
The Pasternack UHF male coaxial connector has a PTFE dielectric type. Pasternack's UHF coaxial connector has a brass body with tin/nickel plating. Our EZ-400-UM-X UHF connector uses a silver-plated phosphor bronze contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. Our high-quality EZ-400-UM-X features a 100 µin body plating specification. The Pasternack EZ-400-UM-X UHF connector operates at a temperature range of -40 to 125 deg C. This threaded male coaxial RF connector has a maximum insertion loss of 0.17 dB. The Pasternack UHF male connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 2,000 Vrms.
This Pasternack male UHF connector will ship the same business day as purchased. Our UHF male connector is part of over 40,000 RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
