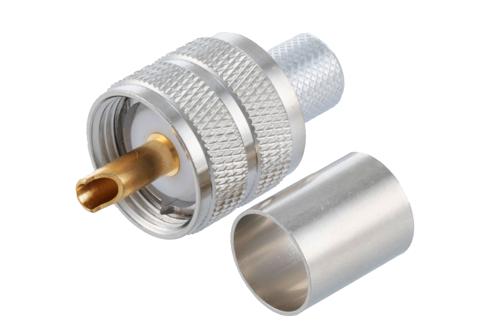

PE51773 UHF male coaxial connector has an interface type of UHF male which is compatible with RG214, RG9, RG225 and RG393 cables and has an impedance of 50 Ohms. Pasternack's UHF male connector uses crimp/solder as an attachment method. Our male UHF coaxial connector provides a maximum frequency of 300 MHz. This UHF male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack UHF male coaxial connector has a PEI dielectric type and a VSWR of 1.3:1. Pasternack's UHF coaxial connector has a brass body with nickel plating. Our PE51773 UHF connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE51773 UHF connector operates at a temperature range of -55 to 85 deg C. This threaded male UHF coaxial RF connector has a maximum insertion loss of 0.027 dB. This UHF connector has a gold inner contact plating. The Pasternack UHF male connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our UHF male connector has a length of 1.37 inches, a width of 0.7 inches, and a weight of 0.044 lbs.
This Pasternack male UHF connector will ship the same business day as purchased. Our UHF male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
