UHF Male Straight Connectors

Check out our new RF calculators & conversion tools...

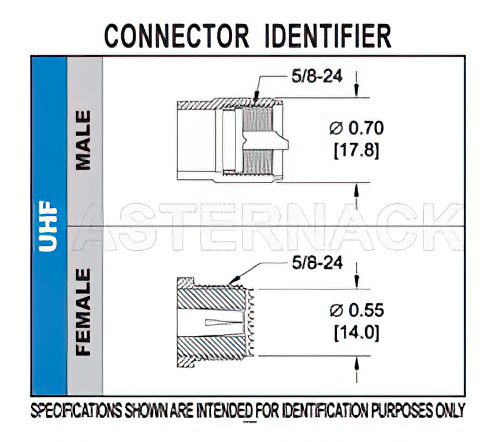

UHF Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195

Product ID: PE44052
UHF Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195


Image Views:  UHF Male Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195 high resolution
Zoomalternate image
View 2


Click for:PE44052 Datasheet
Click for:PE44052 RoHS Cert
Click for:PE44052 REACH Cert
Available Quantity: 103
Pricing Table
QUANTITYPRICE
1-24$11.33
25-49$10.54
50-99$9.74
100-249$9.06
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesUHF
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency300 MHz


UHF Male Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400

PE44052 UHF male coaxial connector has an interface type of RG58, RG55, RG141, RG142, RG223, RG400 and a 50 Ohm impedance. Pasternack UHF male connector uses shield/contact clamp/solder as an attachment method. Our male UHF coaxial connector provides a minimum frequency of DC and a maximum frequency of 300 MHz.

The Pasternack UHF male coaxial connector has a teflon dielectric type. The Pasternack UHF coaxial connector has a brass body with nickel plating. Our PE44052 UHF connector uses brass contact. This UHF male coaxial RF connector is RoHS and REACH compliant.

This Pasternack male UHF connector will ship the same day as purchased. Our UHF male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom UHF connector cable assemblies that will ship the same day as well.
