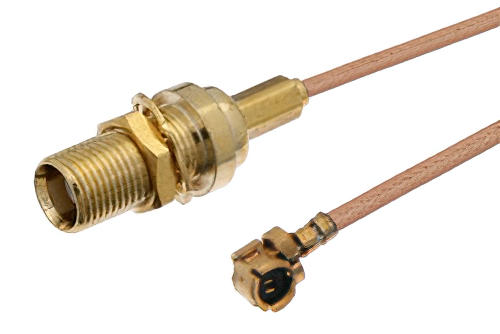

UMCX Plug to Reverse Polarity MCX Jack Bulkhead Cable Using RG178 Coax

Product ID: PE38302
UMCX Plug to Reverse Polarity MCX Jack Bulkhead Cable Using RG178 Coax

Image Views:  UMCX Plug to Reverse Polarity MCX Jack Bulkhead Cable Using RG178 Coax high resolution
Zoom


Click for:PE38302 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
3 in.6 in.9 in.12 in.18 in.24 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1UMCX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2MCX
Connector Gender 2Jack
Connector Polarity 2Reverse Polarity
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250
RF Cable Part NumberRG178B/U
RF Cable TypeRG178
RF Cable Impedance50


UMCX Plug to Reverse Polarity MCX Jack Bulkhead Cable Using RG178 Coax

PE38302 is a UMCX plug right angle to reverse polarity MCX jack bulkhead cable using RG178 coax. This Pasternack UMCX plug right angle to reverse polarity MCX jack bulkhead cable assembly uses a 50 Ohm UMCX for connector 1 and a 50 Ohm MCX for connector 2. UMCX right angle to MCX coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug UMCX right angle to reverse polarity jack MCX bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE38302 UMCX plug right angle to MCX reverse polarity jack bulkhead cable assembly is constructed with RG178 coax.
