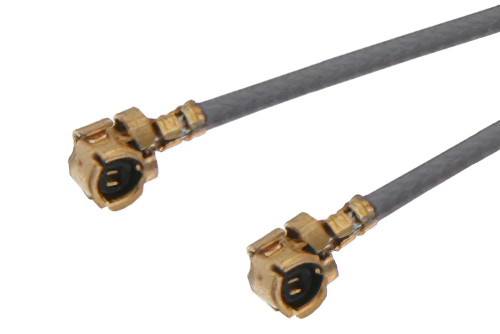

UMCX Plug to UMCX Plug Cable Using 1.13mm Coax
Product ID:
PE38295
Length
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet.
If not provided, cable length tolerances are within the IPC standards (2022-24) as shown
here.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Connector Series 1 | UMCX |
| Connector Gender 1 | Plug |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Right Angle |
| Connector Mount Method 1 | None |
| Connector Impedance 1 | 50 |
| Connector Series 2 | UMCX |
| Connector Gender 2 | Plug |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Right Angle |
| Connector Mount Method 2 | None |
| Connector Impedance 2 | 50 |
| RF Cable Part Number | PE-113mm |
| RF Cable Type | 1.13mm |
| RF Cable Impedance | 50 |
Description
UMCX Plug to UMCX Plug Cable Using 1.13mm Coax
PE38295 is a UMCX plug right angle to UMCX plug right angle cable using 1.13mm coax. This Pasternack UMCX plug right angle to UMCX plug right angle cable assembly uses a 50 Ohm UMCX for connector 1 and a 50 Ohm UMCX for connector 2. UMCX right angle to UMCX right angle coaxial cable assembly uses 90 degree right angle coax cable connector.
Our plug UMCX right angle to plug UMCX right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE38295 UMCX plug right angle to UMCX plug right angle cable assembly is constructed with 1.13mm coax and the maximum VSWR is 1.5:1.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
