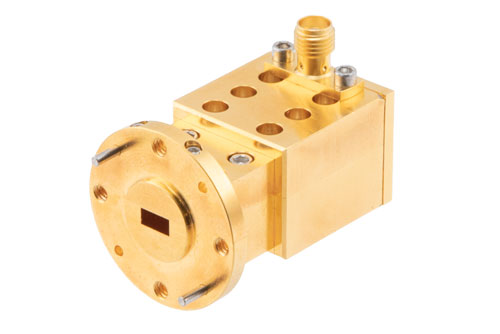

WR-22 Waveguide Power Detector, Q Band, 33 GHz to 50 GHz, Positive Output Voltage Polarity, UG-383/U Flange

Product ID: PE80T3008

Pricing

Quantity	Price
1-4	$3,620.00

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 2

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications.
Waveguide Power Detector Type	Q Band
Waveguide Size	WR-22
Flange Destination	UG-383/U
Flange Type	Round Cover
DC Connector	SMA Female
Material and Plating	Brass and Gold
Frequency Range	33 GHz to 50 GHz
Voltage Sensitivity	1200 mV/mW
Maximum RF Input Power	+17 dBm
Tangential Sensitivity	-50 dBm
Sensitivity Flatness	+/- 2dB
Input Dynamic Range	-55 dBm to +10 dBm
Output Voltage Polarity	Positive
Temperature (Operating Range)	0 to +50 deg C
Length	1.6in [40.64 mm]
Width	1.125in [28.57 mm]
Height	1.114in [28.3 mm]
Weight	0.05lbs [22.68 g]

Description

Q Band WR-22 Waveguide Power Detector, Q Band, 33 GHz to 50 GHz, Positive Output Voltage Polarity, UG-383/U Flange
