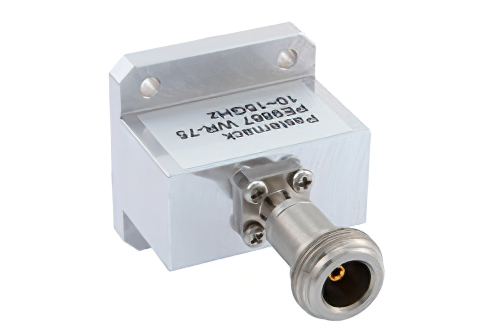

WR-75 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating from 10 GHz to 15 GHz

Product ID: PE9867
WR-75 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating from 10 GHz to 15 GHz


Image Views:  WR-75 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating from 10 GHz to 15 GHz high resolution
Zoomalternate image
View 2


Click for:PE9867 Datasheet
Click for:PE9867 RoHS Cert
Available Quantity: 7
Pricing Table
QUANTITYPRICE
1-24$652.96
25-49$607.25
50-99$561.55
100-249$522.37
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-75
Coax Connector Impedance50 Ohm
Coax Connector SeriesN
Coax Connector GenderFemale
Waveguide Adapter StyleEnd Launch
Minimum Frequency10 GHz
Maximum Frequency15 GHz
Maximum VSWR1.4:1


WR-75 Square Cover Flange to End Launch N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band

PE9867 WR-75 waveguide to coax adapter is also known as a WR-75 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-75 to N type connector and has a female gender. Our WR75 to type N female waveguide adapter transition has a end launch design and has a square cover flange. Pasternack end launch WR-75 to type N waveguide to coaxial cable transition / adapter has a minimum frequency of 10 GHz and a maximum frequency of 15 GHz.

WR-75 waveguide to type N transition adapter to coax PE9867 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-75 waveguide adapter transition with N type interface can ship worldwide the same day that it is purchased as with our other available RF parts.
