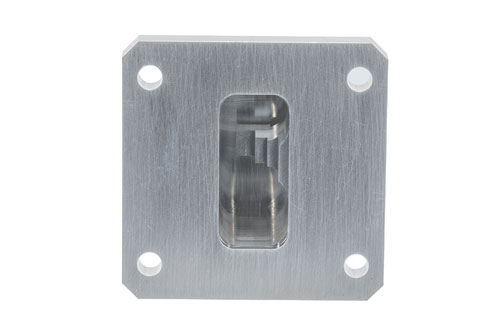

WR-112 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating from 7.05 GHz to 10 GHz
Product ID:
PE9870
Pricing
| Quantity | Price |
| 1-4 | $690.00 |
| 5-9 | $662.40 |
| 10-24 | $634.80 |
| 25+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 26
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-112 |
| Coax Connector Impedance | 50 Ohm |
| Coax Connector Series | N |
| Coax Connector Gender | Female |
| Waveguide Adapter Style | End Launch |
| Minimum Frequency | 7.05 GHz |
| Maximum Frequency | 10 GHz |
| Maximum VSWR | 1.3:1 |
Description
WR-112 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating from 7.05 GHz to 10 GHz
PE9870 WR-112 waveguide to coax adapter is also known as a WR-112 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-112 to type N connector and has a female gender. Our WR-112 to type N female waveguide adapter transition has a end launch design and has a square type flange. Pasternack end launch WR-112 to N type waveguide to coaxial cable transition / adapter has a minimum frequency of 7.05 GHz and a maximum frequency of 10 GHz.
WR-112 waveguide to type N transition adapter to coax PE9870 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-112 waveguide adapter transition with N type interface can ship worldwide the same day that it is purchased as with our other available RF parts.
