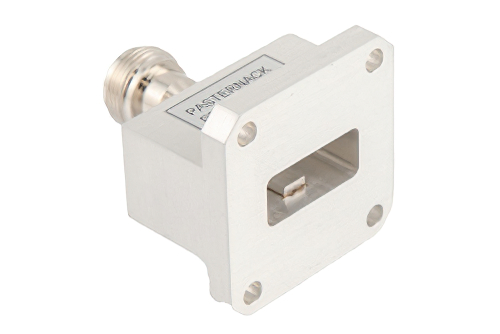

WR-90 UG-135/U Square Cover Flange to End Launch N Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz

Product ID: PE9868
WR-90 UG-135/U Square Cover Flange to End Launch N Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz


Image Views:  WR-90 UG-135/U Square Cover Flange to End Launch N Female Waveguide to Coax Adapter Operating from 8.2 GHz to 12.4 GHz high resolution
Zoomalternate image
View 2


Click for:PE9868 Datasheet
Click for:PE9868 RoHS Cert
Click for:PE9868 REACH Cert
Available Quantity: 2
Pricing Table
QUANTITYPRICE
1-4$769.00
5-9$730.55
10-24$692.10
25+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-90
Coax Connector Impedance50 Ohm
Coax Connector SeriesN
Coax Connector GenderFemale
Waveguide Adapter StyleEnd Launch
Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz
Maximum VSWR1.2:1


WR-90 UG-135/U Square Cover Flange to End Launch N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

PE9868 WR-90 waveguide to coax adapter is also known as a WR-90 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-90 to type N connector and has a female gender. Our WR-90 to type N female waveguide adapter transition has a end launch design and has a square cover flange. Pasternack end launch WR 90 to N type waveguide to coaxial cable transition / adapter has a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz.

WR-90 waveguide to N type transition adapter to coax PE9868 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-90 waveguide adapter transition with type N interface can ship worldwide the same day that it is purchased as with our other available RF parts.
