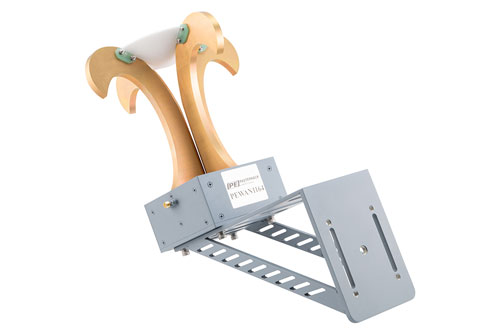

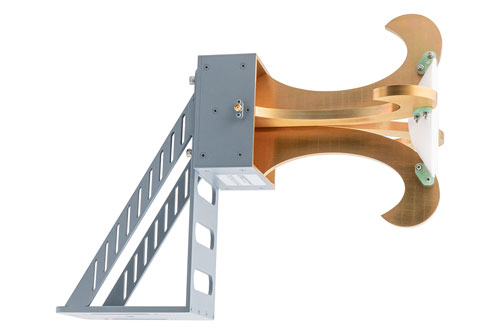

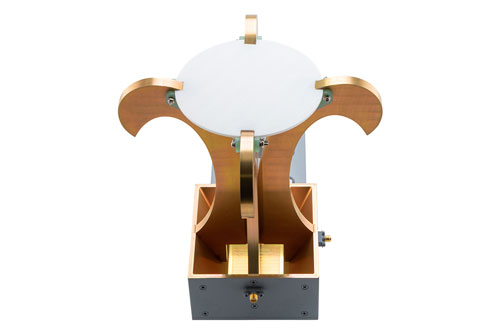

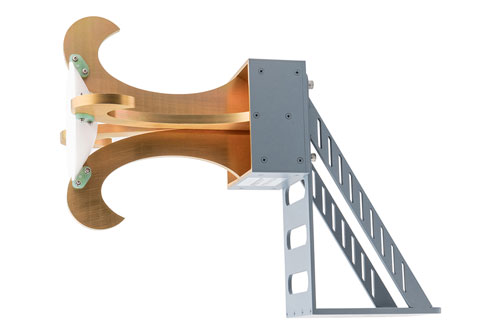

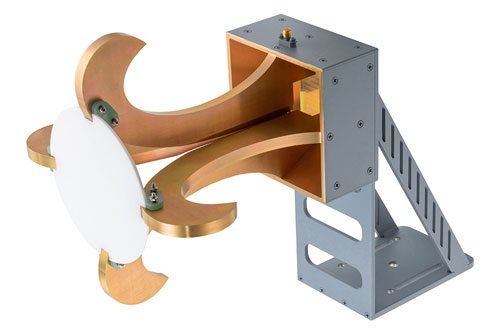

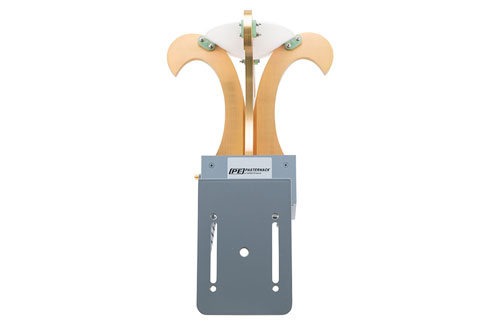

Broadband Horn Antenna, Dual Polarized 0.8 GHz to 18 GHz 20 dBi Gain, SMA Female Connector
Product ID:
PEWAN1164
Pricing
| Quantity | Price |
| 1-4 | $10,575.00 |
| 5-9 | $10,152.00 |
| 10-24 | $9,729.00 |
| 25-99 | $9,306.00 |
| 100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 5
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications. |
| Direction Type |
Directional |
| Polarization |
Dual Linear |
| Frequency, Min |
800 MHz |
| Frequency, Max |
18 GHz |
Description
Broadband Horn Antenna, Dual Polarized 0.8 GHz to 18 GHz 20 dBi Gain, SMA Female Connector
The PEWAN1164 dual polarized broadband horn antenna (also known as a quad ridge horn antenna) from Pasternack is part of our comprehensive selection of broadband antennas. This quad-ridge waveguide horn features dual SMA Female coaxial connector and operates from 0.8 GHz to 18 GHz.
Our PEWAN1164 open boundary dual polarized broadband horn antenna has a nominal gain of 20 dBi with a typical input VSWR of 1.5:1. Pasternack's broadband horns are available with gain values from 6 to 21 dBi with varying frequency ranges to suit the application needs.
Quad ridge horn antennas, such as the PEWAN1164 are used in a wide variety of applications due to the high-power handling capability, low loss, high directivity, and near constant electrical performance. Our broadband antennas are part of over 40,000 RF, microwave, and millimeter wave components from Pasternack available worldwide and ship same day.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
Tolerance Table
