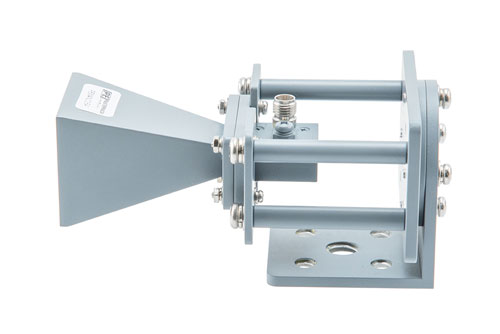

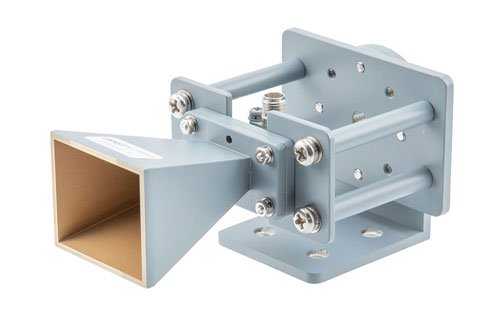

Broadband Gain Horn Antenna, 18 GHz to 40 GHz 15 dBi Gain, 2.92mm Female Connector
The PEWAN1154 broadband gain horn antenna (waveguide horn) from Pasternack is part of our comprehensive selection of waveguide antennas. This broadband horn features an 2.92mm Female coaxial connector and operates from 18 to 40 GHz.
Our PEWAN1154 broadband gain horn antenna has a nominal gain of 15 dBi with a typical input VSWR of 1.5:1. Pasternack's double-ridge broadband horns are available in 10, 11, 13, 15, and 20 dBi models with varying cross band frequency ranges to suit all application needs.
Waveguide antennas, such as the PEWAN1154 are used in a wide variety of applications due to the high-power handling capability, low loss, high directivity, and near constant electrical performance. Our waveguide antennas with 2.92mm Female interface are part of over 40,000 RF, microwave, and millimeter wave components from Pasternack available worldwide and Ship same day.
