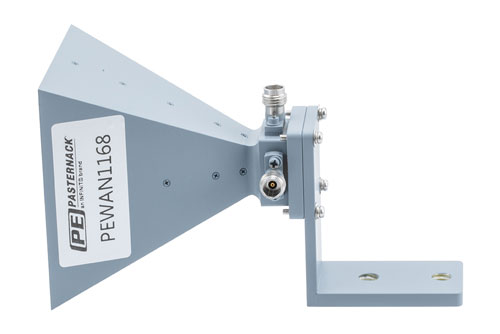

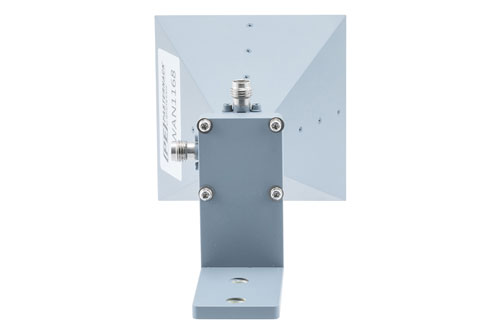

Broadband Horn Antenna, Dual Polarized 18 GHz to 54 GHz 15 dBi Gain, 2.4mm Female Connector
Product ID:
PEWAN1168
Pricing
| Quantity | Price |
| 1-4 | $9,130.00 |
| 5-9 | $8,764.80 |
| 10-24 | $8,399.60 |
| 25-99 | $8,034.40 |
| 100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Call for Availability
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications. |
| Direction Type |
Directional |
| Polarization |
Dual Linear |
| Frequency, Min |
18 GHz |
| Frequency, Max |
54 GHz |
Description
Broadband Horn Antenna, Dual Polarized 18 GHz to 54 GHz 15 dBi Gain, 2.4mm Female Connector
The PEWAN1168 dual polarized broadband horn antenna (also known as a quad ridge horn antenna) from Pasternack is part of our comprehensive selection of broadband antennas. This quad-ridge waveguide horn features dual 2.4mm Female coaxial connector and operates from 18 GHz to 54 GHz.
Our PEWAN1168 dual polarized broadband horn antenna has a nominal gain of 15 dBi with a typical input VSWR of 1.5:1. Pasternack's broadband horns are available with gain values from 6 to 21 dBi with varying frequency ranges to suit the application needs.
Quad ridge horn antennas, such as the PEWAN1168 are used in a wide variety of applications due to the high-power handling capability, low loss, high directivity, and near constant electrical performance. Our broadband antennas are part of over 40,000 RF, microwave, and millimeter wave components from Pasternack available worldwide and ship same day.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
Tolerance Table
