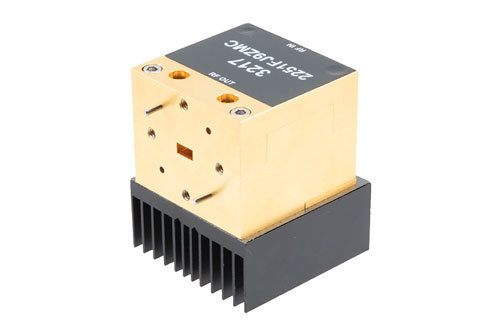

WR-22 Waveguide Power Amplifier, Q Band, 33 GHz to 50 GHz, 45 dB Gain, 20 dBm Psat, UG-383/U Flange
Product ID:
PEWGA3217
Pricing
| Quantity | Price |
| 1-4 | $13,375.00 |
| 5-9 | $12,840.00 |
| 10-24 | $12,305.00 |
| 25-99 | $11,770.00 |
| 100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications. |
| Frequency, Min |
33 GHz |
| Frequency, Max |
50 GHz |
| Gain, Typ |
45 dB |
| 1dB Compression Point, Typ |
18 dBm |
| Input VSWR, Typ |
1.9:1 |
| Output VSWR, Typ |
1.6:1 |
| Voltage, DC Min |
5 Volts |
| Voltage, DC Typ |
8 Volts |
| Voltage, DC Max |
10 Volts |
| Current, DC Typ |
220 mA |
| Input Power (CW), Max |
5 dBm |
Description
WR-22 Waveguide Power Amplifier, Q Band, 33 GHz to
50 GHz, 45 dB Gain, 20 dBm Psat, UG-383/U Flange
The PEWGA3217 is a WR-22 Waveguide Power Amplifier, operating across the Q Band from 33 GHz to 50 GHz. This 50 Ohm
design exhibits impressive typcial performance which includes 45 dB gain, +18 dBm P1dB and +20 dBm Psat. Maximum RF
input power (CW) is +5 dBm, and DC bias is +8 Vdc at 220 mA typ. The rugged and small size aluminum package design
is gold plated with an integrated heatsink to ensure highly reliabile operation. The RF input and output ports support a UG383/U waveguide flange pattern. Solder pins are used for DC bias voltage and ground. The Power amplifier design is RoHS
compliant and operates across a wide temperature range from -10°C to +45°C.
