Low Power WR-62 Waveguide Terminations

Check out our new RF calculators & conversion tools...

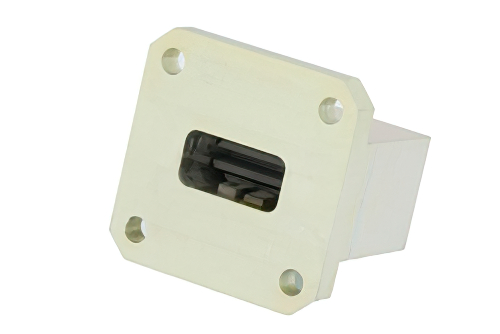

2 Watts Low Power WR-62 Waveguide Load 12.4 GHz to 18 GHz

Product ID: PE6804
2 Watts Low Power WR-62 Waveguide Load 12.4 GHz to 18 GHz


Image Views:  2 Watts Low Power WR-62 Waveguide Load 12.4 GHz to 18 GHz high resolution
Zoomalternate image

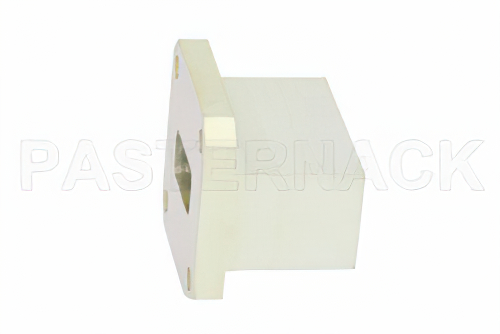

View 2


Click for:PE6804 Datasheet
Click for:PE6804 RoHS Cert
Click for:PE6804 REACH Cert
Available Quantity: 4
Pricing Table
QUANTITYPRICE
1-24$365.63
25-49$340.04
50-99$314.44
100-249$292.50
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Maximum Power2 Watt
Waveguide SizeWR-62
Minimum Frequency12.4 GHz
Maximum Frequency18 GHz
Impedance50 Ohm


2 Watts Low Power WR-62 Waveguide Load 12.4 GHz to 18 GHz

PE6804 2 Watts low power waveguide load (also known as waveguide termination) has a WR-62 input. This Pasternack WR-62 waveguide load / termination is rated for a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz. Our WR-62 waveguide terminator has a maximum input power of 2 Watts.

WR-62 waveguide load / termination PE6804 has an average maximum VSWR of 1.2:1. This Pasternack WR-62 low power waveguide termination / load is part of over 40,000 in-stock RF, microwave and millimeter wave components. Our WR-62 load ships same day as purchased worldwide as with our other RF parts.
