Low Power WR-112 Waveguide Terminations

Check out our new RF calculators & conversion tools...

2 Watts Low Power WR-112 Waveguide Load 7.05 GHz to 10 GHz

Product ID: PE6808

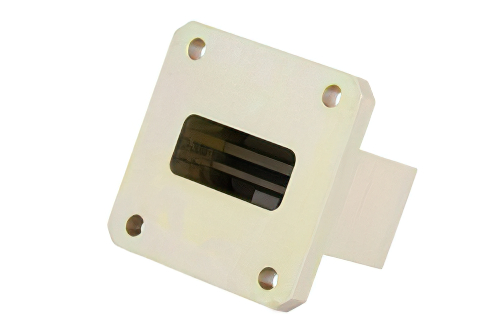

2 Watts Low Power WR-112 Waveguide Load 7.05 GHz to 10 GHz


Image Views:  2 Watts Low Power WR-112 Waveguide Load 7.05 GHz to 10 GHz high resolution
Zoomalternate image
View 2


Click for:PE6808 Datasheet
Click for:PE6808 RoHS Cert
Click for:PE6808 REACH Cert
Available Quantity: 5
Pricing Table
QUANTITYPRICE
1-24$428.10
25-49$398.13
50-99$368.17
100-249$342.48
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Maximum Power2 Watt
Waveguide SizeWR-112
Minimum Frequency7.05 GHz
Maximum Frequency10 GHz
Impedance50 Ohm


2 Watts Low Power WR-112 Waveguide Load 7.05 GHz to 10 GHz

PE6808 2 Watts low power waveguide load (also known as waveguide termination) has a WR-112 input. This Pasternack WR-112 waveguide load / termination is rated for a minimum frequency of 7.05 GHz and a maximum frequency of 10 GHz. Our WR-112 waveguide terminator has a maximum input power of 2 Watts.

WR-112 waveguide load / termination PE6808 has an average maximum VSWR of 1.2:1. This Pasternack WR-112 low power waveguide termination / load is part of over 40,000 in-stock RF, microwave and millimeter wave components. Our WR-112 load ships same day as purchased worldwide as with our other RF parts.
