WR-159 Waveguide Adapters

Check out our new RF calculators & conversion tools...

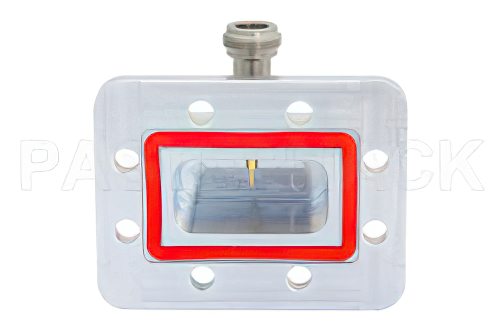

WR-159 CPR-159G Grooved Flange to N Female Waveguide to Coax Adapter Operating from 4.9 GHz to 7.05 GHz

Product ID: PE9839
WR-159 CPR-159G Grooved Flange to N Female Waveguide to Coax Adapter Operating from 4.9 GHz to 7.05 GHz


Image Views:  WR-159 CPR-159G Grooved Flange to N Female Waveguide to Coax Adapter Operating from 4.9 GHz to 7.05 GHz high resolution
Zoomalternate image
View 2


Click for:PE9839 Datasheet
Click for:PE9839 RoHS Cert
Available Quantity: 18
Pricing Table
QUANTITYPRICE
1-24$727.71
25-49$676.77
50-99$625.83
100-249$582.17
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-159
Coax Connector Impedance50 Ohm
Coax Connector SeriesN
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency4.9 GHz
Maximum Frequency7.05 GHz
Maximum VSWR1.3:1


WR-159 CPR-159G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 4.9 GHz to 7.05 GHz

PE9839 WR-159 waveguide to coax adapter is also known as a WR-159 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-159 to type N connector and has a female gender. Our WR-159 to type N female waveguide adapter transition has a right angle design and has a cpr-159g flange. Pasternack right angle WR-159 to N type waveguide to coaxial cable transition / adapter has a minimum frequency of 4.9 GHz and a maximum frequency of 7.05 GHz.

WR-159 waveguide to type N transition adapter to coax PE9839 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-159 waveguide adapter transition with N type interface can ship worldwide the same day that it is purchased as with our other available RF parts.
