WR-62 Waveguide Adapters

Check out our new RF calculators & conversion tools...

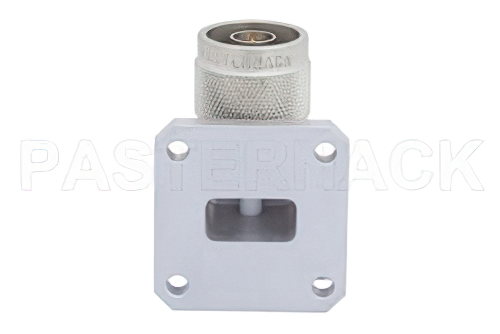

WR-62 Square Cover Flange to N Male Waveguide to Coax Adapter Operating from 12.4 GHz to 18 GHz

Product ID: PE9806
WR-62 Square Cover Flange to N Male Waveguide to Coax Adapter Operating from 12.4 GHz to 18 GHz


Image Views:  WR-62 Square Cover Flange to N Male Waveguide to Coax Adapter Operating from 12.4 GHz to 18 GHz high resolution
Zoomalternate image
View 2


Click for:PE9806 Datasheet
Click for:PE9806 RoHS Cert
Click for:PE9806 REACH Cert
Available Quantity: 16
Pricing Table
QUANTITYPRICE
1-24$516.17
25-49$480.04
50-99$443.91
100-249$412.94
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-62
Coax Connector Impedance50 Ohm
Coax Connector SeriesN
Coax Connector GenderMale
Waveguide Adapter StyleRight Angle
Minimum Frequency12.4 GHz
Maximum Frequency18 GHz


WR-62 Square Cover Flange to N Male Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz

PE9806 WR-62 waveguide to coax adapter is also known as a WR-62 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-62 to N type connector and has a male gender. Our WR62 to type N male waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR-62 to type N waveguide to coaxial cable transition / adapter has a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz.

WR62 waveguide to type N transition adapter to coax PE9806 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-62 waveguide adapter transition with N type interface can ship worldwide the same day that it is purchased as with our other available RF parts.
