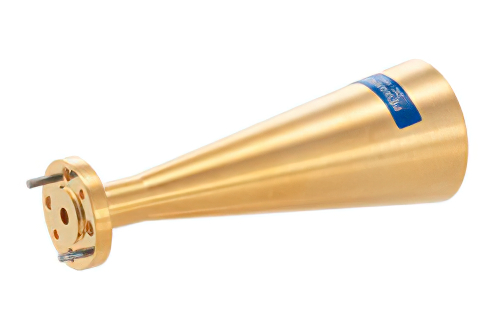

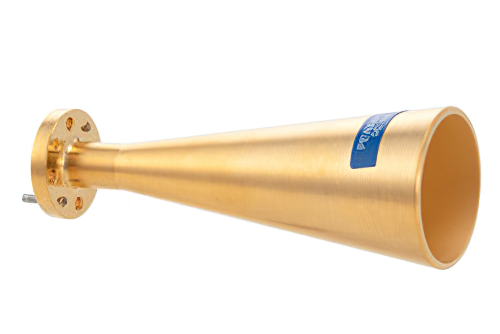

WR-10 Waveguide Conical Gain Horn Antenna Operating from 77 GHz to 87 GHz with a Nominal 25 dBi Gain with UG-387/U Round Cover Flange
Product ID:
PEWAN1056
Pricing
| Quantity | Price |
| 1-1 | $1,230.00 |
| 2-4 | $1,186.95 |
| 5-9 | $1,143.90 |
| 10+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-10 |
| Frequency, Min | 77 GHz |
| Frequency, Max | 87 GHz |
| Beam Width V | 10 |
| Beam Width H | 9 |
Description
WR-10 Waveguide Conical Gain Horn Antenna Operating from 77 GHz to 87 GHz with a Nominal 25 dBi Gain with UG-387/U Round Cover Flange
PEWAN1056 WR-10 conical gain horn antenna is also known as a waveguide horn. This WR-10 conical gain horn antenna has a 25 dBi nominal gain and a round cover flange. Our 25 dBi WR-10 horn antenna has a minimum frequency of 77 GHz and a maximum frequency of 87 GHz.
WR-10 conical gain horn waveguide antenna PEWAN1056 has a vertical beam width of 10 and horizontal of 9 degrees at 3 dB. This WR-10 conical gain horn antenna with 25 dBi is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-10 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
