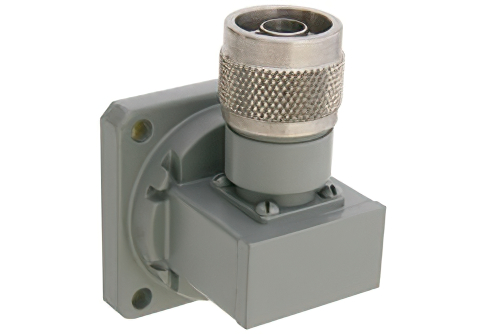

WR-102 Square Cover Flange to N Male Waveguide to Coax Adapter Operating From 7 GHz to 11 GHz
Product ID:
PE9808
Key Specifications
Key Specifications (Click on Data Sheet Above for Additional Details). |
Waveguide Size | WR-102 |
Coax Connector Impedance | 50 Ohm |
Coax Connector Series | N |
Coax Connector Gender | Male |
Waveguide Adapter Style | Right Angle |
Minimum Frequency | 7 GHz |
Maximum Frequency | 11 GHz |
Maximum VSWR | 1.3:1 |
Description
WR-102 Square Cover Flange to N Male Waveguide to Coax Adapter Operating from 7 GHz to 11 GHz
PE9808 WR-102 waveguide to coax adapter is also known as a WR-102 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-102 to type N connector and has a male gender. Our WR102 to N type male waveguide adapter transition has a right angle design and has a square cover flange. Pasternack right angle WR102 to type N waveguide to coaxial cable transition / adapter has a minimum frequency of 7 GHz and a maximum frequency of 11 GHz.
WR-102 waveguide to type N transition adapter to coax PE9808 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-102 waveguide adapter transition with N type interface can ship worldwide the same day that it is purchased as with our other available RF parts.
