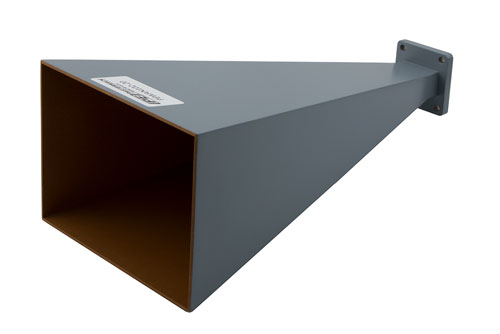

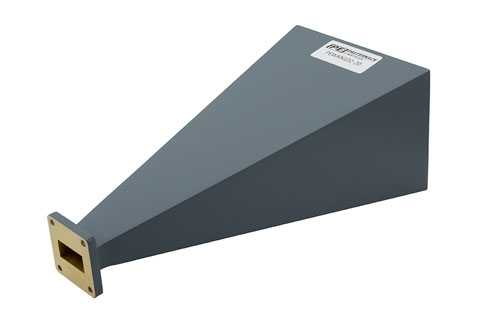

WR-102 Waveguide Antenna, 7 GHz to 11 GHz Frequency Range, 20 dBi Gain,
Product ID:
PEWAN102-20
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-102 |
| Frequency, Min | 7 GHz |
| Frequency, Max | 11 GHz |
| Beam Width V | 17.5 |
| Beam Width H | 17.3 |
Description
WR-102 Waveguide Antenna, 7 GHz to 11 GHz Frequency Range, 20 dBi Gain,
PEWAN102-20 WR-102 gain horn antenna is also known as a waveguide horn. This WR-102 gain horn antenna has a 20 dB nominal gain and a square cover flange. Our 20 dB WR-102 horn antenna has a minimum frequency of 7 GHz and a maximum frequency of 11 GHz.
WR 102 gain horn waveguide antenna PEWAN102-20 has a vertical beam width of 17.5 and horizontal of 17.3 degrees at 3 dB. This WR-102 gain horn antenna with 20 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-102 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
