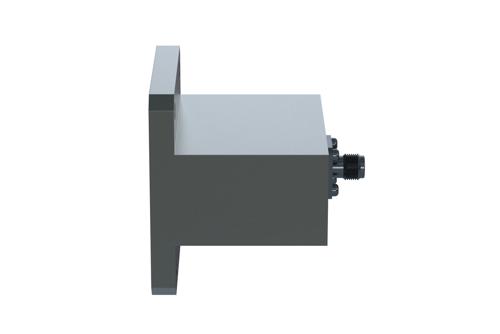

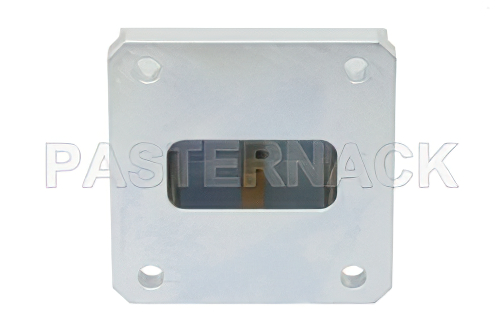

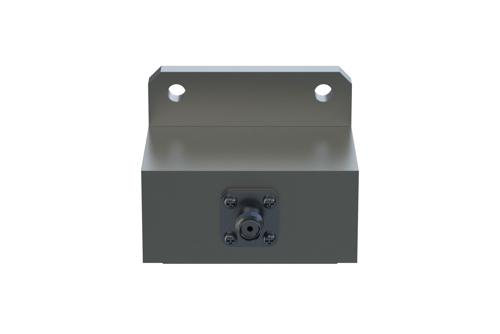

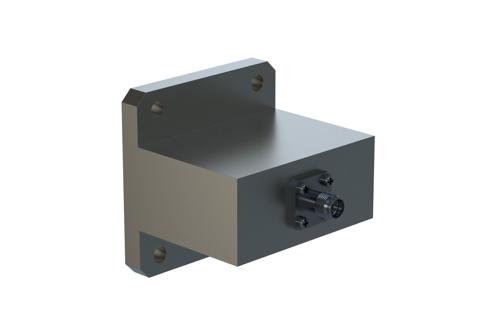

WR-112 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating from 7.05 GHz to 10 GHz

Product ID: PE9865
WR-112 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating from 7.05 GHz to 10 GHz


Image Views:  WR-112 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating from 7.05 GHz to 10 GHz high resolution
Zoomalternate image
View 2


Click for:PE9865 Datasheet
Click for:PE9865 RoHS Cert
Available Quantity: 9
Pricing Table
QUANTITYPRICE
1-24$571.38
25-49$531.38
50-99$491.39
100-249$457.10
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-112
Coax Connector Impedance50 Ohm
Coax Connector SeriesSMA
Coax Connector GenderFemale
Waveguide Adapter StyleEnd Launch
Minimum Frequency7.05 GHz
Maximum Frequency10 GHz
Maximum VSWR1.4:1


WR-112 Square Cover Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band

PE9865 WR-112 waveguide to coax adapter is also known as a WR-112 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-112 to SMA connector and has a female gender. Our WR112 to SMA female waveguide adapter transition has a end launch design and has a square cover flange. Pasternack end launch WR112 to SMA waveguide to coaxial cable transition / adapter has a minimum frequency of 7.05 GHz and a maximum frequency of 10 GHz.

WR 112 waveguide to SMA transition adapter to coax PE9865 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-112 waveguide adapter transition with SMA interface can ship worldwide the same day that it is purchased as with our other available RF parts.
