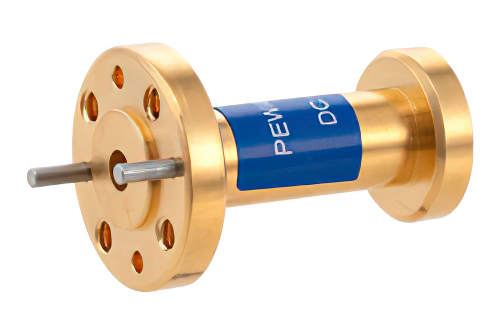

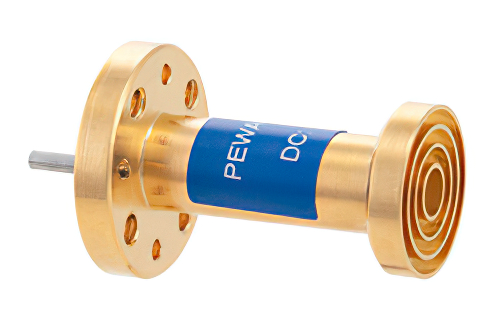

WR-12 Waveguide Wide Angle Scalar Feed Horn Antenna Operating from 72 GHz to 82 GHz with a Nominal 10 dBi Gain with UG-385/U Round Cover Fla
Product ID:
PEWAN1072
Pricing
| Quantity | Price |
| 1-1 | $2,510.00 |
| 2-4 | $2,422.15 |
| 5-9 | $2,334.30 |
| 10+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-12 |
| Frequency, Min | 72 GHz |
| Frequency, Max | 82 GHz |
| Beam Width V | 56 |
| Beam Width H | 55 |
Description
WR-12 Waveguide Wide Angle Scalar Feed Horn Antenna Operating from 72 GHz to 82 GHz with a Nominal 10 dBi Gain with UG-385/U Round Cover Fla
PEWAN1072 WR-12 wide angle scalar feed horn gain horn antenna is also known as a waveguide horn. This WR-12 wide angle scalar feed horn gain horn antenna has a 10 dBi nominal gain and a round cover flange. Our 10 dBi WR-12 horn antenna has a minimum frequency of 72 GHz and a maximum frequency of 82 GHz.
WR-12 wide angle scalar feed horn gain horn waveguide antenna PEWAN1072 has a vertical beam width of 56 and horizontal of 55 degrees at 3 dB. This WR 12 wide angle scalar feed horn gain horn antenna with 10 dBi is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-12 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
