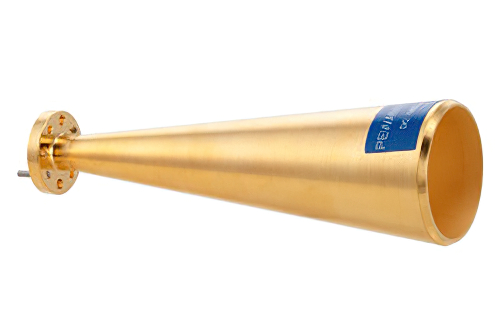

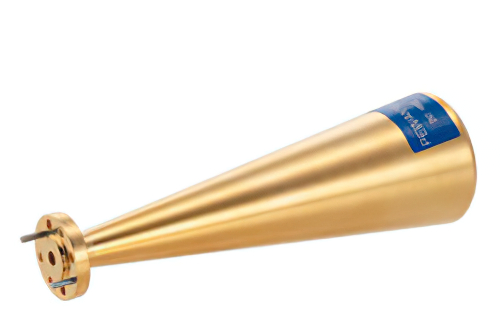

WR-12 Waveguide Conical Gain Horn Antenna Operating from 68 GHz to 77 GHz with a Nominal 25 dBi Gain with UG-387/U Round Cover Flange

Product ID: PEWAN1044

Pricing

QuantityPrice
1-1$1,746.88
2-4$1,685.74
5-9$1,624.60
10+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 3
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-12
Frequency, Min68 GHz
Frequency, Max77 GHz
Beam Width V10
Beam Width H9

Description

WR-12 Waveguide Conical Gain Horn Antenna Operating from 68 GHz to 77 GHz with a Nominal 25 dBi Gain with UG-387/U Round Cover Flange

PEWAN1044 WR-12 conical gain horn antenna is also known as a waveguide horn. This WR-12 conical gain horn antenna has a 25 dBi nominal gain and a round cover flange. Our 25 dBi WR 12 horn antenna has a minimum frequency of 68 GHz and a maximum frequency of 77 GHz.

WR-12 conical gain horn waveguide antenna PEWAN1044 has a vertical beam width of 10 and horizontal of 9 degrees at 3 dB. This WR12 conical gain horn antenna with 25 dBi is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR12 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
