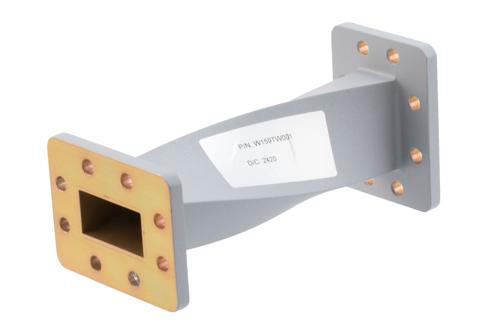

Pasternack’s PEW159TW001 waveguide twists are just one part of a large selection of our waveguide components. Our WR-159 waveguide twist has a minimum frequency of 4.64 GHz and a maximum frequency of 7.05 GHz. This WR-159 solid waveguide type has a right-hand twist rotation. Our waveguide twist has a solid waveguide type with a WR-159 waveguide size. Make your online purchase right now to take advantage of our same-day shipping.

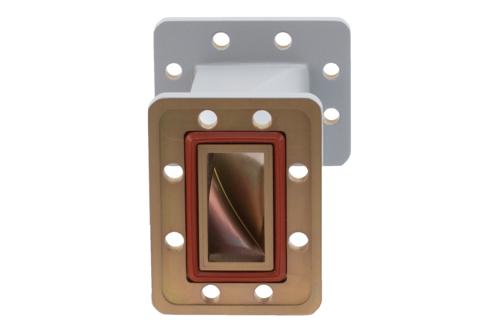

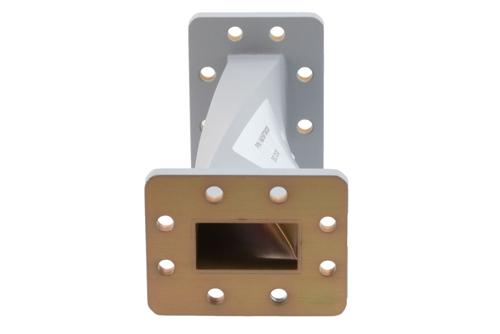

This WR-159 waveguide twist is constructed with a UG Cover and UG Grooved flange. Our WR-159 waveguide twist has a 90-degree twist angle. The WR-159 waveguide with UG Cover and UG Grooved flange is in stock now. Our WR-159 90-degree waveguide has a gray-colored flange. The PEW159TW001 waveguide twist is appropriate for instrumentation, precision measurements, prototyping and characterization and production systems applications.
The PEW159TW001 waveguide twist from Pasternack has aluminum material with chromate conversion plating. The WR-159 waveguide twist has a typical VSWR of 1.15:1 along with a 0.2 dB typical insertion loss. Our waveguide twist is built to operate within the temperature range of -40 to +70 deg C. Additional dimensions and specifications for this waveguide twists are in our downloadable PDF datasheet.
The 90-degree waveguide twist with WR-159 from Pasternack is part of over one million RF, microwave, and millimeter waveguide components in stock. Our PEW159TW001 waveguide twist is ready for same business day purchase and shipping worldwide. Pasternack also stocks a wide selection of other waveguide products that ship same business day from our United States facility for all your RF/microwave waveguide component needs. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect WR-159 waveguide twist for your requirements.
