WR-159 Waveguide Adapters

Check out our new RF calculators & conversion tools...

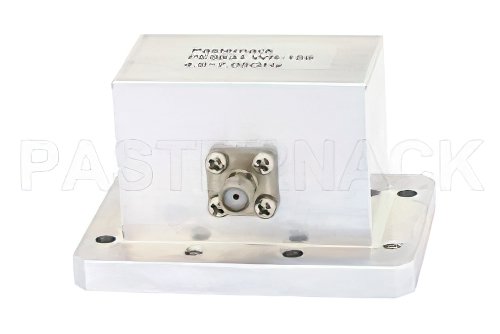

WR-159 CMR-159 Flange to SMA Female Waveguide to Coax Adapter Operating from 4.9 GHz to 7.05 GHz

Product ID: PE9831
WR-159 CMR-159 Flange to SMA Female Waveguide to Coax Adapter Operating from 4.9 GHz to 7.05 GHz


Image Views:  WR-159 CMR-159 Flange to SMA Female Waveguide to Coax Adapter Operating from 4.9 GHz to 7.05 GHz high resolution
Zoomalternate image
View 2


Click for:PE9831 Datasheet
Click for:PE9831 RoHS Cert
Available Quantity: 21
Pricing Table
QUANTITYPRICE
1-24$647.62
25-49$602.29
50-99$556.95
100-249$518.10
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-159
Flange SizeNone
Coax Connector Impedance50 Ohm
Coax Connector SeriesSMA
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency4.9 GHz
Maximum Frequency7.05 GHz
Maximum VSWR1.3:1


WR-159 CMR-159 Flange to SMA Female Waveguide to Coax Adapter Operating From 4.9 GHz to 7.05 GHz, C Band

PE9831 WR-159 waveguide to coax adapter is also known as a WR-159 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-159 to SMA connector and has a female gender. Our WR159 to SMA female waveguide adapter transition has a right angle design and has a cmr-159 flange. Pasternack right angle WR-159 to SMA waveguide to coaxial cable transition / adapter has a minimum frequency of 4.9 GHz and a maximum frequency of 7.05 GHz.

WR 159 waveguide to SMA transition adapter to coax PE9831 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-159 waveguide adapter transition with SMA interface can ship worldwide the same day that it is purchased as with our other available RF parts.
