WR-187 Waveguide Adapters

Check out our new RF calculators & conversion tools...

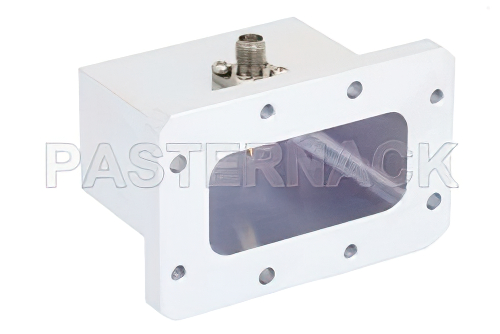

WR-187 CMR-187 Flange to SMA Female Waveguide to Coax Adapter Operating from 3.95 GHz to 5.85 GHz

Product ID: PE9832
WR-187 CMR-187 Flange to SMA Female Waveguide to Coax Adapter Operating from 3.95 GHz to 5.85 GHz


Image Views:  WR-187 CMR-187 Flange to SMA Female Waveguide to Coax Adapter Operating from 3.95 GHz to 5.85 GHz high resolution
Zoomalternate image
View 2


Click for:PE9832 Datasheet
Click for:PE9832 RoHS Cert
Available Quantity: 23
Pricing Table
QUANTITYPRICE
1-24$784.77
25-49$729.84
50-99$674.90
100-249$627.82
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-187
Flange SizeNone
Coax Connector Impedance50 Ohm
Coax Connector SeriesSMA
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency3.95 GHz
Maximum Frequency5.85 GHz
Maximum VSWR1.3:1


WR-187 CMR-187 Flange to SMA Female Waveguide to Coax Adapter Operating From 3.95 GHz to 5.85 GHz, C Band

PE9832 WR-187 waveguide to coax adapter is also known as a WR-187 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-187 to SMA connector and has a female gender. Our WR-187 to SMA female waveguide adapter transition has a right angle design and has a cmr-187 flange. Pasternack right angle WR-187 to SMA waveguide to coaxial cable transition / adapter has a minimum frequency of 3.95 GHz and a maximum frequency of 5.85 GHz.

WR187 waveguide to SMA transition adapter to coax PE9832 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-187 waveguide adapter transition with SMA interface can ship worldwide the same day that it is purchased as with our other available RF parts.
