WR-187 Waveguide Antenna, 3.95 GHz to 5.85 GHz Frequency Range, 15 dBi Gain,
Product ID:
PEWAN187-15
Pricing
| Quantity | Price |
| 1-4 | $1,210.00 |
| 5-9 | $1,185.80 |
| 10-24 | $1,161.60 |
| 25-99 | $1,137.40 |
| 100+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 9
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-187 |
| Frequency, Min | 3.95 GHz |
| Frequency, Max | 5.85 GHz |
| Beam Width V | 31 |
| Beam Width H | 32 |
Description
WR-187 Waveguide Antenna, 3.95 GHz to 5.85 GHz Frequency Range, 15 dBi Gain,

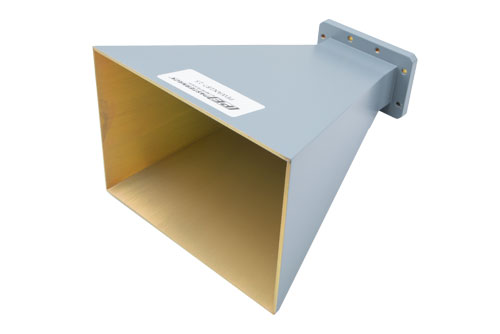

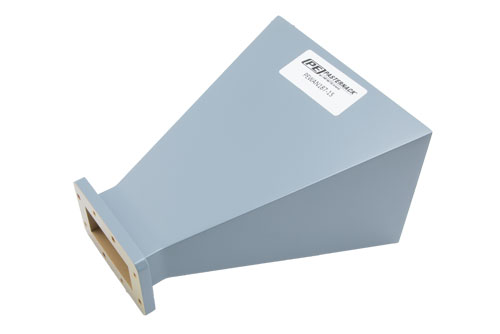

PEWAN187-15 WR-187 gain horn antenna is also known as a waveguide horn. This WR-187 gain horn antenna has a 15 dB nominal gain and a cmr-187 flange. Our 15 dB WR-187 horn antenna has a minimum frequency of 3.95 GHz and a maximum frequency of 5.85 GHz.
WR187 gain horn waveguide antenna PEWAN187-15 has a vertical beam width of 31 and horizontal of 32 degrees at 3 dB. This WR-187 gain horn antenna with 15 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-187 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
