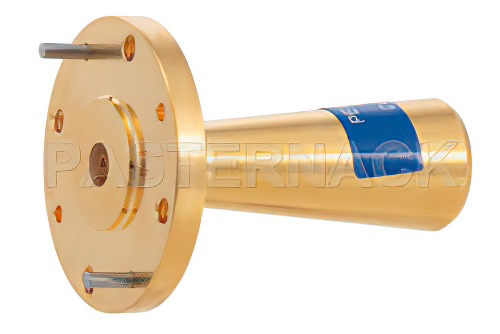

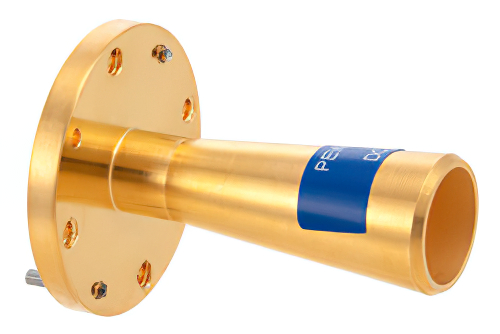

WR-19 Waveguide Conical Gain Horn Antenna Operating from 50 GHz to 58 GHz with a Nominal 15 dBi Gain with UG-383/U-Mod Round Cover Flange
Product ID:
PEWAN1034
Pricing
| Quantity | Price |
| 1-1 | $1,330.32 |
| 2-4 | $1,283.76 |
| 5-9 | $1,237.20 |
| 10+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 2
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-19 |
| Frequency, Min | 50 GHz |
| Frequency, Max | 58 GHz |
| Beam Width V | 16 |
| Beam Width H | 30 |
Description
WR-19 Waveguide Conical Gain Horn Antenna Operating from 50 GHz to 58 GHz with a Nominal 15 dBi Gain with UG-383/U-Mod Round Cover Flange
PEWAN1034 WR-19 conical gain horn antenna is also known as a waveguide horn. This WR-19 conical gain horn antenna has a 15 dBi nominal gain and a round cover flange. Our 15 dBi WR-19 horn antenna has a minimum frequency of 50 GHz and a maximum frequency of 58 GHz.
WR 19 conical gain horn waveguide antenna PEWAN1034 has a vertical beam width of 16 and horizontal of 30 degrees at 3 dB. This WR-19 conical gain horn antenna with 15 dBi is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-19 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
