WR-22 Waveguide Sections

Check out our new RF calculators & conversion tools...

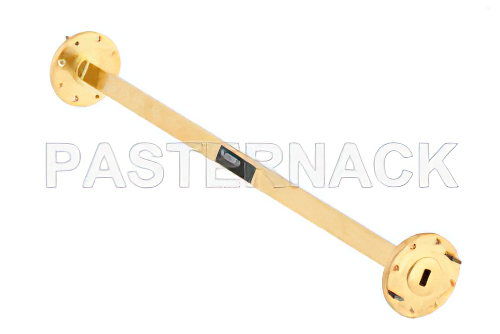

WR-22 Instrumentation Grade Straight Waveguide Section 9 Inch Length with UG-383/U Flange Operating from 33 GHz to 50 GHz

Product ID: PE-W22S001-9
WR-22 Instrumentation Grade Straight Waveguide Section 9 Inch Length with UG-383/U Flange Operating from 33 GHz to 50 GHz


Image Views:  WR-22 Instrumentation Grade Straight Waveguide Section 9 Inch Length with UG-383/U Flange Operating from 33 GHz to 50 GHz high resolution
Zoomalternate image
View 2


Click for:PE-W22S001-9 Datasheet
Available Quantity: 8
Pricing Table
QUANTITYPRICE
1-1$420.07
2-4$403.27
5-9$386.46
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide Size 1WR-22
Flange Size 1UG-383/U
Waveguide Size 2WR-22
Flange Size 2UG-383/U
Length9 inches
Frequency, Min33 GHz
Frequency, Max50 GHz


WR-22 Instrumentation Grade Straight Waveguide Section 9 Inch Length with UG-383/U Flange Operating from 33 GHz to 50 GHz

PE-W22S001-9 WR-22 waveguide section is straight and is 9 inches long. This 9 inch WR-22 straight waveguide section from Pasternack is instrumentation grade and has a UG-383/U flange. Our straight WR-22 waveguide section with UG-383/U flange has a minimum frequency of 33 GHz and a maximum frequency of 50 GHz.

WR-22 waveguide section PE-W22S001-9 is part of over 40,000 RF, microwave and millimeter wave components. Our instrumentation grade WR-22 straight waveguide section will ship same the day as it is purchased worldwide as with our other RF parts.
